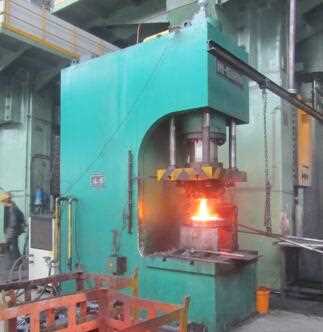

YD41 C Frame 40ton - 1250ton 11KW-400KW Hydraulic Press
* This series hydraulic press suitable for correction technology such as small shaft parts, profiles, and etc , and the technologies of drawing, bending, stamping, forming, blanking process , and powder, plastic products pressing .
Quick Details
Description
- Condition: New
- CNC or Not: CNC
- Power Source: Hydraulic
- Place of Origin: Jiangsu, China (Mainland)
- Brand Name: DYMG
- Model Number: YD41
- Voltage: 220V/380V/415V(According required )
- Power(W): 11KW-400KW
- Weight: 6ton-300ton
- Dimension(L*W*H): about -15500mmx9500mmx12500mm
- Certification: CE ISO
- Warranty: 12 Months
- After-sales Service Provided: Engineers available to service machinery overseas
- Product name: YD41 C Frame Hydraulic Press (40ton~1250ton)
- Keyword: Hydraulic Press
- Structure: Three-beam four-post type
- Feature: pressure and the stroke can be adjustable within the specified range.
- Technology Process: fixed pressure and fixed stroke forming process
- Control: integrated control
- Optional 1: Moveable Bolster,Punching buffering device
- Optional 2: Industrial Touch Display
- Application: metal material drawing, blanking (equip with buffer device)
- Color: Customizable
|
Item
|
Unit
|
YD41-40
|
YD41-100A
|
YD41-
200A
|
YD41-
315
|
YD41-
500
|
YD41-
800
|
YD41-
1250
|
|
Rated Force
|
KN
|
400
|
1000
|
2000
|
3150
|
5000
|
8000
|
12500
|
|
Maximum Open Height
|
mm
|
700
|
1000
|
700
|
1200
|
1900
|
2000
|
2500
|
|
Slide Stroke
|
mm
|
400
|
700
|
500
|
800
|
1000
|
1000
|
1200
|
|
Throat Depth
|
mm
|
325
|
450
|
400
|
650
|
1600
|
1600
|
2000
|
|
Slide Speed
|
Idle
|
mm/s
|
90
|
200
|
260
|
100
|
100
|
100
|
120
|
|
Pressing
|
mm/s
|
20
|
8-20
|
8-29
|
10-25
|
5-12
|
5-12
|
4-10
|
|
Return
|
mm
|
180
|
190
|
200
|
100
|
80
|
80
|
80
|
|
Bolster Size
|
LR
|
mm
|
800
|
1000
|
1000
|
1250
|
2300
|
2500
|
2900
|
|
FB
|
mm
|
600
|
900
|
700
|
1000
|
2000
|
2200
|
3000
|
|
Slider Size
|
LR
|
mm
|
600
|
600
|
800
|
1000
|
1500
|
1800
|
2000
|
|
FB
|
mm
|
400
|
400
|
600
|
800
|
1200
|
1500
|
1800
|
|
Lift weight of crane
|
KW
|
—
|
—
|
—
|
—
|
2×3000
|
2×3000
|
—
|
|
Crane Lift Stroke
|
KG
|
—
|
—
|
—
|
—
|
5000
|
5000
|
—
|
|
Height Above Ground
|
mm
|
750
|
800
|
920
|
1100
|
300
|
300
|
200
|
|
|
Main Motor Power
|
KG
|
7.5
|
11
|
33
|
44
|
44
|
55
|
~ 85
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Application:
* This series hydraulic press suitable for correction technology such as small shaft parts, profiles, and etc , and the technologies of drawing, bending, stamping, forming, blanking process , and powder, plastic products pressing .
Product Features:
* Computer optimized vertical C structure design with high stiffness .
* All accessories installed inside of the fuselage, ensure elegant appearance .
* The hydraulic control system adopt cartridge valve integrated system, to reduce the leakage points, ensure reliable operation, and long service of life .
* With both hands and pedal operation modes .
* The stroke and pressure can be adjusted within the prescribed scope
Optional Configuration :
* Correction of the bolster
* Pressure holding
* Injection performance
* Semi-automatic process
* Speed Adjustable Performance
* Photoelectric protection device
XUZHOU DAYI INTELLIGNE TECHNOLOGY CO.,LTD
is a large-scale professional power press R&D and manufacturing enterprise, covered capacity 40ton~18000ton .
* Inherited more than 60 years of metalforming R&D and Manufacturing experiences, more than 20 patents.
* Factory Area 200,000.00 square meters.
Main Products :
* Hydraulic Press
*Forging Hydraulic Press
* Special Purpose Customized Power Press.
Widely used in varieties of areas of aerospace, automobile manufacturing, shipbuilding, home appliances and others ,popular for technologies of drawing, blanking, bending, Extrusion, Forging, SMG Composite molding , and etc.
Technology advantages :
* Take lead in technologies of proportional servo control, position digital control, synchronizing control, screen-touching and industry computer control, adopt three-dimension and module design technology, representing the highest level in the hydraulic press industry in china
Manufacturing Strength:
*The company have lots of large floor boring and milling machines, heavy lathes, milling machine planers and other key equipments, for varieties of machining.
*Also established new production base specially for heavy duty hydraulic press manufacturing more than 4000ton.
Marketing :
* As a result of good quality and reputation so that our products renowned at home and abroad, typical customers such as China CRRC ,China CSR,China FAW ,YTO,SINOPEC,CSIC,SHIFENG GROUP ,LIFAN AUTO, BTE wheel , SUNRISE Wheel , Fiat, Bosch,Gree Air-conditioners, and etc.
*The presses already exported to over 20 countries and regions, such as Asia, Australia, America and Africa, and etc.
