Quick Details
Description
- Condition: New
- CNC or Not: CNC
- Power Source: Hydraulic
- Place of Origin: Jiangsu, China (Mainland)
- Brand Name: DYMG
- Model Number: YD32G
- Voltage: 220V/380V(According required )
- Power(W): 7.5KW-400KW
- Weight: 6ton-300ton
- Dimension(L*W*H): about -15500mmx9500mmx12500mm
- Certification: CE ISO
- Warranty: 12 Months
- After-sales Service Provided: Engineers available to service machinery overseas
- Product name: YD32G High Speed Forming Hydraulic Press
- Keyword: Hydraulic Press
- Structure: Three-beam four-post type
- Feature: pressure and the stroke can be adjustable within the specified range.
- Technology Process: fixed pressure and fixed stroke forming process
- Control: integrated control
- Optional 1: Moveable Bolster,Punching buffering device
- Optional 2: Industrial Touch Display
- Application: metal material drawing, blanking (equip with buffer device)
- Color: Customizable
* Provide Customized Personalized Service
|
Model
|
Rated Force
|
Boslter
Size
|
Maximum Open Heigh
|
Slide Stroke
|
Slide Speed
|
Hydraulic Cushion
|
Hydraulic Cushion Stroke
|
Hydraulic Cushion Size
|
Buffering Power
|
Buffering Stroke
|
|
KN
|
LR ×FB
|
mm
|
mm
|
Downward mm/s
|
Working
mm/s
|
Return mm/s
|
KN
|
mm
|
LR ×FB
|
KN
|
mm
|
|
mm
|
mm
|
|
YD27-100
|
1000
|
850×600
|
600
|
450
|
250
|
7-16
|
200
|
150
|
200
|
460×360
|
--
|
--
|
|
YD27-200
|
2000
|
2500×1500
|
1100
|
700
|
300-350
|
8-30
|
300
|
630
|
200
|
1850×1100
|
--
|
--
|
|
YD27-315
|
3150
|
1200×1000
|
1250
|
800
|
250
|
7-16
|
200
|
1000
|
350
|
950×800
|
--
|
--
|
|
YD27-500
|
5000
|
4000×2500
|
1800
|
1200
|
350-450
|
12-30
|
300
|
2000
|
350
|
3370×1870
|
200
|
50
|
|
YD27-630
|
6300
|
1600×1400
|
1500
|
900
|
250
|
7-16
|
200
|
2500
|
400
|
1120×800
|
350
|
50
|
|
YD27-1000
|
10000
|
4500×2500
|
1800
|
1200
|
350
|
12-30
|
300
|
4000
|
400
|
3820×1870
|
400
|
50
|
|
YD27-3000
|
30000
|
3500×2200
|
2200
|
1600
|
250
|
7-16
|
200
|
1000
|
400
|
2920×1570
|
--
|
--
|
|
YD27-5000
|
50000
|
5000×2500
|
2200
|
1600
|
350
|
12-30
|
300
|
12000
|
400
|
4270×1870
|
--
|
--
|

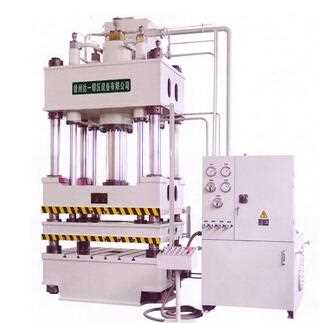

Y28 Series Four-column Double-action Hydraulic Press (100/150ton~800/1300ton)
Key Words : Double-action Hydraulic Press / Four-column Hydraulic Press / Four-column Double-action Hydraulic Press
Application:
* Apply to all deep and shallow drawing process, and can be used for blanking, bending, flanging process.
* Especially for the following areas: large cars, agricultural vehicles covering parts and other spare parts,and tractor, motorcycle, aviation areas.
Product Features:
* Four-column type structure is simple, economic and practical.
* Adopt cartridge valve integrated hydraulic control system, ensure reduce the leakage points, reliable operation, and long service of life.
* Automatic guide rail lubricating device.
* PLC control the electrical system and compact structure, ensure sensitive, reliable and flexible.
* Working pressure and stroke can be adjusted according to the technological requirements within the prescribed scope, ensure easy operation.
* Can realize the fixed pressure and fixed stroke technology , with functions of pressure hold and time delay , and delay time can be adjustable.
* Drawing slider and blankholder slider can be consolidate as one block by positioning pin, realize the single action hydraulic press technology .
* Adopt centralized control button, three operation modes of adjustment, manual and semi-automatic
Optional Configuration :
* Movable Bolster
* Blanking buffer device
* Photoelectric protection device
* Knock-out Device
* PLC
* Mould heating and temperature control device.
* Industrial Touch displays
* Heating and cooling device in the hydraulic system.
* Digital display for stroke, pressure, speed, and numerical control device.
* Knock out device, holder pressure slider , hydraulic Cushion equip with pressure adjustable device.
XUZHOU DAYI INTELLIGNE TECHNOLOGY CO.,LTD
is a large-scale professional power press R&D and manufacturing enterprise, covered capacity 40ton~18000ton .
* Inherited more than 60 years of metalforming R&D and Manufacturing experiences, more than 20 patents.
* Factory Area 200,000.00 square meters.
Main Products :
* Hydraulic Press
*Forging Hydraulic Press
* Special Purpose Customized Power Press.
Widely used in varieties of areas of aerospace, automobile manufacturing, shipbuilding, home appliances and others ,popular for technologies of drawing, blanking, bending, Extrusion, Forging, SMG Composite molding , and etc.
Technology advantages :
* Take lead in technologies of proportional servo control, position digital control, synchronizing control, screen-touching and industry computer control, adopt three-dimension and module design technology, representing the highest level in the hydraulic press industry in china
Manufacturing Strength:
*The company have lots of large floor boring and milling machines, heavy lathes, milling machine planers and other key equipments, for varieties of machining.
*Also established new production base specially for heavy duty hydraulic press manufacturing more than 4000ton.
Marketing :
* As a result of good quality and reputation so that our products renowned at home and abroad, typical customers such as China CRRC ,China CSR,China FAW ,YTO,SINOPEC,CSIC,SHIFENG GROUP ,LIFAN AUTO, BTE wheel , SUNRISE Wheel , Fiat, Bosch,Gree Air-conditioners, and etc.
*The presses already exported to over 20 countries and regions, such as Asia, Australia, America and Africa, and etc.
