Quick Details
Description
- Condition: New
- CNC or Not: CNC
- Power Source: Hydraulic
- Place of Origin: Jiangsu, China (Mainland)
- Brand Name: DYMG
- Model Number: YD30
- Voltage: 220V/380V(According required )
- Power(W): 7.5KW-22KW
- Weight: 6ton-300ton
- Dimension(L*W*H): about -15500mmx9500mmx12500mm
- Certification: CE ISO
- Warranty: 12 Months
- After-sales Service Provided: Engineers available to service machinery overseas
- Product name: YD32G High Speed Forming Hydraulic Press
- Keyword: Hydraulic Press
- Structure: Three-beam four-post type
- Feature: pressure and the stroke can be adjustable within the specified range.
- Technology Process: fixed pressure and fixed stroke forming process
- Control: integrated control
- Optional 1: Moveable Bolster,Punching buffering device
- Optional 2: Industrial Touch Display
- Application: metal material drawing, blanking (equip with buffer device)
- Color: Customizable
|
Item
|
Unit
|
YD30-40
|
YD30-63A
|
YD30-100A
|
YD30-160
|
YD30-200
|
YD30-250
|
|
Rated Force
|
KN
|
400
|
630
|
1000
|
1600
|
2000
|
2500
|
|
Slide Stroke
|
mm
|
400
|
500
|
700
|
700
|
700
|
800
|
|
Throat Depth
|
mm
|
320
|
360
|
450
|
450
|
450
|
450
|
|
Maximum Open Height
|
mm
|
700
|
1000
|
1100
|
1100
|
1100
|
1200
|
|
Slide Speed
|
Idle
|
mm/s
|
90
|
220
|
220
|
200
|
200
|
200
|
|
Pressing
|
mm/s
|
8-20
|
8-20
|
8-20
|
6-16
|
6-16
|
6-16
|
|
Return
|
mm
|
190
|
140
|
190
|
180
|
180
|
180
|
|
Bolster Size
|
L-R
|
mm
|
700
|
800
|
900
|
900
|
900
|
900
|
|
F-B
|
mm
|
600
|
700
|
800
|
800
|
800
|
800
|
|
Slider Size
|
L-R
|
mm
|
500
|
500
|
600
|
600
|
600
|
600
|
|
F-B
|
mm
|
400
|
400
|
500
|
500
|
500
|
500
|
|
Main Motor Power
|
KG
|
7.5
|
7.5
|
11
|
11
|
22
|
22
|
|
Distance between Table and Floor
|
mm
|
750
|
750
|
800
|
900
|
900
|
900
|
Product Features:

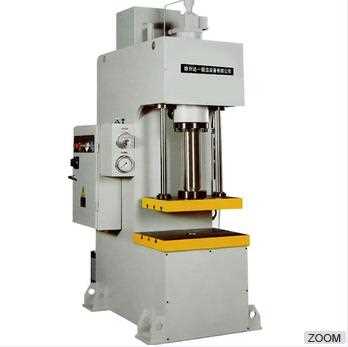

* C Frame single column structure, with economical and practical features. Fast speed, high efficiency, suitable for pressing, press fitting, etc.
* Integrated hydraulic system adopts cartridge valve control, reduce the leakage points, ensure reliable operation, and long service of life. The electric control system adopts imported PLC, which can realize two kinds of technologies, fixed pressure and fixed pressure ,and adjustment ,manual, semiautomatic three kinds of operation modes .
XUZHOU DAYI INTELLIGNE TECHNOLOGY CO.,LTD
is a large-scale professional power press R&D and manufacturing enterprise, covered capacity 40ton~18000ton .
* Inherited more than 60 years of metalforming R&D and Manufacturing experiences, more than 20 patents.
* Factory Area 200,000.00 square meters.
Main Products :
* Hydraulic Press
*Forging Hydraulic Press
* Special Purpose Customized Power Press.
Widely used in varieties of areas of aerospace, automobile manufacturing, shipbuilding, home appliances and others ,popular for technologies of drawing, blanking, bending, Extrusion, Forging, SMG Composite molding , and etc.
Technology advantages :
* Take lead in technologies of proportional servo control, position digital control, synchronizing control, screen-touching and industry computer control, adopt three-dimension and module design technology, representing the highest level in the hydraulic press industry in china
Manufacturing Strength:
*The company have lots of large floor boring and milling machines, heavy lathes, milling machine planers and other key equipments, for varieties of machining.
*Also established new production base specially for heavy duty hydraulic press manufacturing more than 4000ton.
Marketing :
* As a result of good quality and reputation so that our products renowned at home and abroad, typical customers such as China CRRC ,China CSR,China FAW ,YTO,SINOPEC,CSIC,SHIFENG GROUP ,LIFAN AUTO, BTE wheel , SUNRISE Wheel , Fiat, Bosch,Gree Air-conditioners, and etc.
*The presses already exported to over 20 countries and regions, such as Asia, Australia, America and Africa, and etc.
