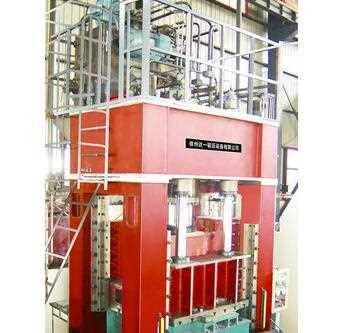

- Product name: Y28F Series H Framework Double-action Hydraulic Press
- Keyword: Hydraulic Press
- Structure: Three-beam four-post type
- Feature: pressure and the stroke can be adjustable within the specified range.
- Technology Process: fixed pressure and fixed stroke forming process
- Control: integrated control
- Optional 1: Moveable Bolster,Punching buffering device
- Optional 2: Industrial Touch Display
- Application: metal material drawing, blanking (equip with buffer device)
- Color: Customizable
|
Item
|
Unit
|
YD28F-200/315A
|
YD28F-300/450
|
YD28F-300/500A
|
YD28F-400/650D
|
YD28F-500/800B
|
YD28F-800/1300
|
YD28F-1700/2500
|
|
Rated Force
|
KN
|
3150
|
4500
|
5000
|
6500
|
8000
|
1300
|
25000
|
|
Drawing Force
|
KN
|
2000
|
3000
|
3000
|
4000
|
5000
|
8000
|
17000
|
|
Blank Holder Force
|
KN
|
1150
|
1500
|
2000
|
2500
|
3000
|
5000
|
8000
|
|
Hydraulic Cushion Force (Ejecting Force )
|
KN
|
630
|
630
|
2000
|
1250
|
1800
|
3000
|
6000
|
|
Drawing Slide Open Height
|
mm
|
1500
|
1000
|
1500
|
1400
|
1800
|
2300
|
2500
|
|
Blank Holder Slider Open Height
|
mm
|
1500
|
1000
|
1500
|
1400
|
1800
|
2200
|
2500
|
|
Drawing Slider Stroke
|
mm
|
800
|
650
|
800
|
900
|
1200
|
1400
|
1500
|
|
Blank Holder Slider Stroke
|
mm
|
800
|
650
|
800
|
900
|
1200
|
1300
|
1500
|
|
Hydraulic Cushion((Ejecting ) Stroke
|
mm/s
|
300
|
450
|
350
|
350
|
300
|
350
|
400
|
|
Slider Speed (Drawing /Blank Holder )
|
Free Stroke
|
mm/s
|
120/120
|
150/150
|
150/150
|
250/250
|
250/250
|
250/250
|
350/350
|
|
Work
|
mm/s
|
10-30/
15-40
|
10-20/
12-30
|
50/50
|
12-25/
16-30
|
12-25/
16-40
|
10-20/
12-30
|
10-30/
15-35
|
|
Return
|
mm
|
190/130
|
150/150
|
150/150
|
200/200
|
200/200
|
200/220
|
270/270
|
|
Drawing Slider Size
|
L-R
|
mm
|
800
|
500
|
500
|
1200
|
2200
|
3500
|
4500
|
|
F-B
|
mm
|
700
|
500
|
500
|
1100
|
1700
|
1800
|
2200
|
|
Blank Holder Slider Size
|
L-R
|
mm
|
1500
|
1400
|
1200
|
2000
|
3200
|
4200
|
5500
|
|
|
F-B
|
mm
|
1200
|
1400
|
1200
|
1800
|
2400
|
2400
|
2800
|
|
|
Bolster Size
|
L-R
|
mm
|
1500
|
1400
|
1200
|
2000
|
3200
|
4200
|
5500
|
|
|
F-B
|
mm
|
1200
|
1400
|
1200
|
1800
|
2400
|
2400
|
2800
|
|
|
Hydraulic Cushion
|
L-R
|
mm
|
1000
|
—
|
400
|
2000
|
2000
|
3600
|
4600
|
|
|
F-B
|
mm
|
700
|
—
|
400
|
1250
|
1500
|
1800
|
1800
|
|
|
Bolster Weight
|
T
|
—
|
—
|
—
|
25
|
—
|
50
|
50
|
|
|
Main Motor
|
KW
|
50
|
50
|
230
|
70
|
70
|
200
|
230
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Product Features:
Application:
* Apply to all deep and shallow drawing process, and can be used for blanking, bending, flanging process.
* Especially for the following areas: large cars, agricultural vehicles covering parts and other spare parts, and tractor, motorcycle, aviation areas.
Product Features:
* H Framework structure , ensure good rigidity, high precision , strong resistance strength of eccentric load.
* Adopt cartridge valve integrated hydraulic control system, ensure reduce the leakage points, reliable operation, and long service of life.
* Automatic guide rail lubricating device.
* PLC control the electrical system and compact structure, ensure sensitive, reliable and flexible.
* Working pressure and stroke can be adjusted according to the technological requirements within the prescribed scope, ensure easy operation.
* Can realize the fixed pressure and fixed stroke technology , with functions of pressure hold and time delay , and delay time can be adjustable.
* Drawing slider and blankholder slider can be consolidate as one block by positioning pin, realize the single action hydraulic press technology .
* Adopt centralized control button, three operation modes of adjustment, manual and semi-automatic
Optional Configuration :
* Movable Bolster
* Blanking buffer device
* Photoelectric protection device
* Knock-out Device
* PLC
* Mould heating and temperature control device.
* Industrial Touch displays
* Heating and cooling device in the hydraulic system.
* Digital display for stroke, pressure, speed, and numerical control device.
* Knock out device, holder pressure slider , hydraulic Cushion equip with pressure adjustable device
