Quick Details
Description
- Condition:New
- Place of Origin:Henan, China (Mainland)
- Brand Name:Baiwei

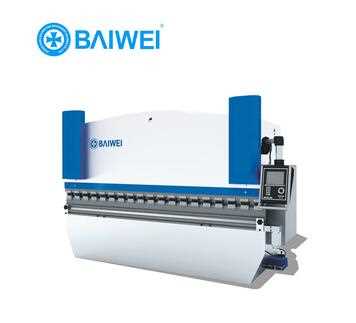

- Model Number:WC67Y-100/3200 used plate bending machine
- Machine Type:Beading Machine
- Raw Material:Sheet / Plate Rolling
- Material / Metal Processed:Stainless Steel
- Power:Hydraulic
- Automation:Automatic
- Extra Services:bending angle cnc
- Certification:ISO 9001:2000
- After-sales Service Provided:Engineers available to service machinery overseas
- MOTOR::SERVO MOTOR
- PUMP::GEAR PUMP
- WORKING POWER::415V/380V/220V
- Bending Length Range::100-1000mm
- Keywood:cnc bending machine 250t
- MAX thickness for ordinary metal::8mm(CS),5mm(SS)
- MAX opening height::460mm
- hydraulic system & valve::BOSCH Germany
- Number of strokes::≥11
- Length of the working table::2500
manual metal bending machine 2m of main application:
1.This machine is used for bending various metal sheets, as long as the users equip different kinds of moulds, metal sheets can be bent into workpiece with various shapes, when equipped with the corresponding equipments, the machine still can punch hole.
2.This machine could be used in factories such as aircraft, shipbuilding, automobile, electrical appliances etc. with high efficiency.
manual metal bending machine 2m of performance and characteristics:
1.This machine has higher Labor productivity and certain bending accuracy for bending metal sheets
2.When bending sheets of different thickness and different shapes and sizes, different shapes on the metal mould should choose different shaped upper mould or v-shaped groove lower mould with different dimensions of the mouth.
3.Bending force is calculated by the sheet bending gauges or bending strength.
4.Because of using hydraulic transmission, in the work, in order to avoid serious overloading accident due to sheet thickness changes or improper selection of mould v-shaped tank. Besides, the machine works smoothly, with small mechanical noise, easy operation; especially in the working process it has equal rated pressure.
manual metal bending machine 2m of technical parameter ：
|
Model
|
Nominal Pressure (kN)
|
Length of table (mm)
|
Distance Between Housing (mm)
|
Throat Depth (mm)
|
Stroke(mm)
|
Number of stokes(Min-1)
|
Max Open Hight (mm) (mm)
|
Main motor KW
|
Dimension(L*W*H)mm
|
|
WC67Y-50/2500
|
500
|
2500
|
2000
|
250
|
120
|
≥16
|
320
|
5.5
|
2600*1400*2000
|
|
WC67Y-50/3200
|
500
|
3200
|
2600
|
250
|
120
|
≥16
|
320
|
5.5
|
3300*1400*2200
|
|
WC67Y-63/2500
|
630
|
2500
|
2000
|
250
|
120
|
≥14
|
335
|
5.5
|
2605*1725*2200
|
|
WC67Y-63/3200
|
630
|
3200
|
2600
|
250
|
120
|
≥14
|
335
|
5.5
|
3300*1725*2355
|
|
WC67Y-80/2500
|
800
|
2500
|
2000
|
250
|
120
|
≥14
|
335
|
7.5
|
2605*1725*2355
|
|
WC67Y-80/3200
|
800
|
3200
|
2600
|
250
|
120
|
≥14
|
335
|
7.5
|
3300*1725*2405
|
|
WC67Y-80/4000
|
800
|
4000
|
3100
|
280
|
120
|
≥14
|
335
|
7.5
|
4210*1550*2300
|
|
WC67Y-100/2500
|
1000
|
2500
|
2000
|
320
|
120
|
≥12
|
385
|
7.5
|
2560*1320*2510
|
|
WC67Y-100/3200
|
1000
|
3200
|
2600
|
320
|
120
|
≥12
|
385
|
7.5
|
3260*1320*2510
|
|
WC67Y-100/4000
|
1000
|
4000
|
3100
|
320
|
120
|
≥12
|
385
|
7.5
|
4060*1320*2760
|
|
WC67Y-125/3200
|
1000
|
3200
|
2600
|
320
|
120
|
≥12
|
385
|
7.5
|
4060*1320*2760
|
|
WC67Y-125/4000
|
1250
|
4000
|
3100
|
320
|
120
|
≥12
|
385
|
7.5
|
4080*1825*2430
|
|
WC67Y-160/3200
|
1600
|
3200
|
2600
|
320
|
120
|
≥10
|
470
|
11
|
3270*1625*2665
|
|
WC67Y-160/4000
|
1600
|
4000
|
3100
|
320
|
120
|
≥10
|
470
|
11
|
4070*1625*2765
|
|
WC67Y-160/6000
|
1600
|
6000
|
4800
|
380
|
120
|
≥8
|
470
|
11
|
6100*1800*2800
|
|
WC67Y-200/3200
|
2000
|
3200
|
2600
|
320
|
250
|
≥8
|
465
|
11
|
3280*1930*2800
|
|
WC67Y-200/4000
|
2000
|
4000
|
3100
|
320
|
250
|
≥8
|
485
|
11
|
4060*1750*2950
|
|
WC67Y-200/6000
|
2000
|
6000
|
4800
|
380
|
250
|
≥8
|
485
|
18.5
|
6200*2100*3100
|
|
WC67Y-250/4000
|
2500
|
4000
|
3100
|
400
|
250
|
≥8
|
560
|
18.5
|
4070*2000*3260
|
|
WC67Y-250/6000
|
2500
|
6000
|
4800
|
400
|
250
|
≥8
|
560
|
18.5
|
6200*2200*3300
|
|
WC67Y-300/4000
|
3000
|
4000
|
3100
|
400
|
250
|
≥6
|
560
|
18.5
|
4000*2035*3110
|
|
WC67Y-300/6000
|
3000
|
6000
|
4800
|
400
|
250
|
≥5
|
560
|
22
|
6200*2300*3500
|
|
WC67Y-400/6000
|
4000
|
6000
|
4800
|
400
|
250
|
≥5
|
580
|
30
|
6300*2600*3800
|
|
WC67Y-500/6000
|
5000
|
6000
|
4800
|
400
|
300
|
≥4
|
640
|
45
|
6300*2800*4500
|
|
WC67Y-600/6000
|
6000
|
6000
|
4800
|
500
|
300
|
≥4
|
680
|
45
|
6500*3100*5200
|
Zhengzhou Baiwei CNC Machinery Shares Co.,Ltd. was established in 2004,main products are:Fiber laser cutting machine,CNC laser cutting machine,high-power laser cutting machine,YAG medium power laser cutting machine,electro-hydraulic servo CNC bening machine,CNC shearing machine,CNC plasma flame cutting machines,CNC turret punch press.We has strong R&D department,to meet customer specific requirements,we are willing to customized personalized products for you.
We are located in Zhengzhou high-tech industry district,university science and technology park,it covers 60,000 square meters,with modern plant 32,000 square meters.6,000 square meters of the industry's first thermostatic numerical control equipment assembly plant,to build a world-class sheet metal,cutting equipment.
