Quick Details
Description
- Condition:Used
- Year:2016
- Place of Origin:Henan, China (Mainland)
- Brand Name:Baiwei
- Model Number:BW-DSA9090 used plasma cutting tables for sale
- Voltage:AC 380/220V±10%/50Hz
- Rated Power:1500w
- Dimension(L*W*H):3500*2000*1000mm
- Weight:1000kg
- Certification:CE
- Warranty:1 year
- After-sales Service Provided:Engineers available to service machinery overseas
- application:for cutting sheet metal
- cutting method:plasma cutting
- track span width:2000mm
- track length:3500mm
- effective cutting range:1500*3000mm (59*102 inch)
- torch lifter distance:Not less 120 mm
- cutting thickness:10mm
- cutting speed:1-6000mm/min
- CNC system:SH-2012AH
- fastCAM:Standard software FastCAM

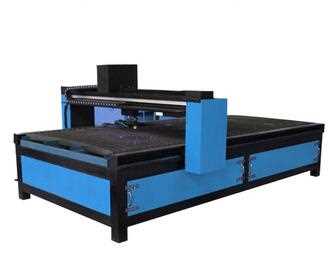

CNC plasma cutting machine is a sheet metal cutting machine, which is applied to iron,
aluminum,galvanized sheet, white steel and other sheet metal cutting machine, with the advantages of high quality, high precision, easy to operate and other basic features.
|
model
|
MiniCut 1530
|
|
power
|
AC 380/220V±10%/50Hz
|
|
cutting method
|
plasma cutting
|
|
Track span width
|
2000mm
|
|
track length
|
3500mm
|
|
effective cutting range
|
1500*3000mm
|
|
cutting torch lifting body
|
1set
|
|
torch lifter distance
|
Not less 120 mm
|
|
number of cutting torch
|
2 set
|
|
plasma specifications
|
Max63
|
|
cutting thickness
|
Plasma:10mm
|
|
no-load speed
|
1—6000mm/min
|
|
cutting speed
|
1—6000mm/min
|
|
machine operating accuracy
|
±0.5mm/m
|
|
CNC system
|
SH-2012AH
|
|
plasma pressure
vertical steering
|
Senang HS-1002G
|
|
fastCAM
|
Standard software FastCAM
|
|
guide rail and cutting frame
|
Factory production
|
Features and functions
Machine bed for the whole high rigidity structure. Unique beam design, compact structure, flexible and stable, high positioning accuracy, speed, vibration small.
Zhengzhou Baiwei CNC Machinery Shares Co.,Ltd. was established in 2004,main products are:Fiber laser cutting machine,CNC laser cutting machine,high-power laser cutting machine,YAG medium power laser cutting machine,electro-hydraulic servo CNC bening machine,CNC shearing machine,CNC plasma flame cutting machines,CNC turret punch press.We has strong R&D department,to meet customer specific requirements,we are willing to customized personalized products for you.
We are located in Zhengzhou high-tech industry district,university science and technology park,it covers 60,000 square meters,with modern plant 32,000 square meters.6,000 square meters of the industry's first thermostatic numerical control equipment assembly plant,to build a world-class sheet metal,cutting equipment.
