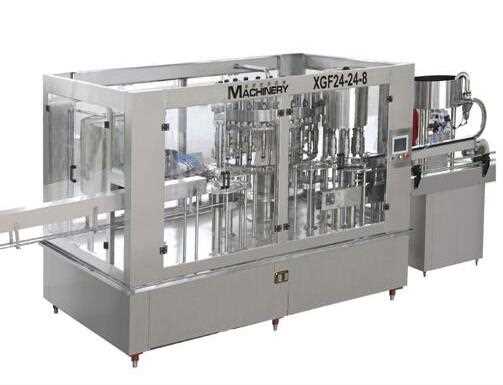

1.PET bottle washing-filling -capping machine
2.capacity:2000-18000bph
3.suitable for PET bottle with advanced technology
Water bottling machine/line/equipments
(1) This bottling machine is mainly used for washing, filling and capping PET bottle which can fill non- carbonated drinks such as mineral water, pure water, wine and so on.
(2) Bottle washing, filling and capping are achieved in one machine.
(3) The contact time is shorten between material and the outside. And improved the health conditions, production capacity and economic benefits.
(4) CGF series bottling machine adopts hanging type conveying-bottle structure to make changing bottle mold more convenient, faster and more laborsaving.
(5) The main machine adopts advanced PLC control technology. The key electric elements adopt Mitsubishi, Omron, Siemens, etc international famous products.
|
Main Technical Data
|
|
Model
|
CGF12125
|
CGF18186
|
CGF24248
|
CGF323210
|
CGF404012
|
CGF505012
|
CGF606015
|
CGF808020
|
|
Number of washing, filling and capping heads
|
12-12-5
|
18-18-6
|
24-24-8
|
32-32-10
|
40-40-12
|
50-50-12
|
60-60-15
|
80-80-20
|
|
Production capacity(600ml)
(B/H)
|
2000-4000
|
5000-7000
|
8000-12000
|
12000-15000
|
16000-20000
|
20000-24000
|
25000-30000
|
35000-40000
|
|
suitable bottle specification(mm)
|
φ=50-110 H=170 volume=330-2250ml
|
|
Washing pressure(kg/cm 2 )
|
2-3
|
|
Motor power(kw)
|
Main motor
2.2kw
|
Main motor
2.2kw
|
Main motor
3kw
|
Main motor
5.5kw
|
Main motor
7.5kw
|
Main motor
11kw
|
Main motor
15kw
|
Main motor
19kw
|
|
Overall dimensions (mm)
|
2400×1650
×2500
|
2600×1920
×2550
|
3100×2300
×2800
|
3800×2800
×2900
|
4600×2800
×2900
|
5450×3300
×2900
|
6500×4500
×2900
|
76800×66400
×2850
|
|
Weight (kg)
|
2500
|
3500
|
4500
|
6500
|
8500
|
9800
|
12800
|
150
|
Zhangjiagang Keyuan Machinery Co., Ltd. is a modern technical enterprise set up to meet the 21st century's development demand regarding beverage packing machinery and all sorts of water treatment facilities. Our company has production experience of more than 20 years. Our company is a professional enterprise producing full sets of beverage packing machinery and all sorts of water treatment facilities, integrating product development, scientific research & design, production, technical service and marketing.
At present, our company provides the following production lines:
Complete sets of gas containing drink production lines
Complete sets of Mineral water and spring water production lines
Complete sets of Pure water production lines
Complete sets of Fruit juice production lines
Bean milk & protein drink production lines
Complete sets of white spirit, soy and vinegar filling production lines
Keyuan would like to move forward together with you and will spare no effort. Welcome to Keyuan!
