Quick Details
Description
- Type:Labeling Machine
- Condition:New
- Application:Beverage, Food
- Packaging Type:Bottles
- Packaging Material:Wood
- Automatic Grade:Automatic
- Driven Type:Electric
- Voltage:220V/380V 50hz
- Power:7kw
- Place of Origin:Jiangsu, China (Mainland)
- Brand Name:KEYUAN
- Model Number:MT-50
- Dimension(L*W*H):2000(L)*950(W)*1260(H) (mm)
- Weight:2000kg
- Certification:CE ISO
- After-sales Service Provided:Engineers available to service machinery overseas

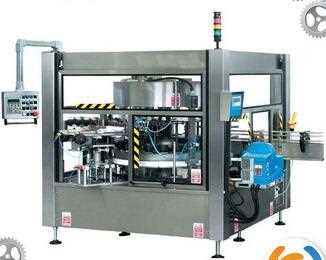

- Name:Hot melt Labeling Machine
- Labeling speed:20-200pcs/min
- Function:bottle labeling
- Raw Meterial::Stainless Stain304/316
- Automatic Grade::Full-Automatic
- Main Electric Parts::Schneider
- Transport Package::Wooden Case
- Brand::KeYuan Machinery
- Delivery Time::30 Days After Getting Order Payment
- Origin::ZhangJiaGang City.China
Roll-fed labeling machine, hot-melt OPP labeling machine, automatic opp labeling machine
THE MAIN EQUIPMENT DESCRIPTION
Feature:
PLC control system, full-automatic working
Main engine is controlled by three-phase converter motor, speed adjustable
Disc label-pasting and label-adsorbing
Include such mechanisms as label-providing, belt-conveying, label-cutting, wheels-attaching, vacuum-adsorbing, hot sol-conveyance
Hot sol providing machine is made in a hundred million Hertz.
VAC and PUMP don't start working unless the hot sol machine gets to designed temperature.
STOP(ALARM) installation for label running-out
STOP installation for pasting failure
Applied to different specifications of packing for food, chemical, medicine, cosmetic and daily necessities
Bottle material: Plastics, glass, steel, etc
Made of stainless steel SUS#304 and imported T6 aluminum alloy after being anode hardened
Adjustable label-pasting speed of main engine
Imported optical-fiber electronic eye
Horizontally adjustable main engine
On-line production, simple and rapid installation
Alarm for missing label or gap
Vertically adjustable main engine (adjustment for label position)
Side wheels-attaching mechanical sets
Alarm for label running-out
Indicator light and alarm for abnormality
Technical Parameter
|
Main engine size (length*width*height)
|
2800L x 1200W x 1800H mm
|
|
Machine weight
|
1500kg
|
|
Main engine production speed (adjustable)
|
limitation: 0-200 bottles/minute
|
|
Main engine power supply
|
AC 3 phase220-380V
|
|
Main engine power
|
15kw
|
|
Air consumption
|
1M3/hour
|
|
Label material
|
OPP BOPP PP PS PE PVC
|
|
Label length
|
25mm -350mm
|
|
Bottle/can diameter
|
10- 100 mm
|
Zhangjiagang Keyuan Machinery Co., Ltd. is a modern technical enterprise set up to meet the 21st century's development demand regarding beverage packing machinery and all sorts of water treatment facilities. Our company has production experience of more than 20 years. Our company is a professional enterprise producing full sets of beverage packing machinery and all sorts of water treatment facilities, integrating product development, scientific research & design, production, technical service and marketing.
At present, our company provides the following production lines:
Complete sets of gas containing drink production lines
Complete sets of Mineral water and spring water production lines
Complete sets of Pure water production lines
Complete sets of Fruit juice production lines
Bean milk & protein drink production lines
Complete sets of white spirit, soy and vinegar filling production lines
Keyuan would like to move forward together with you and will spare no effort. Welcome to Keyuan!
