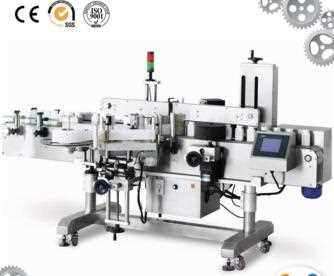

TB-150 Round Bottle Labeler Jar sticker labeling machine

Type:Labeling Machine

Condition:New

Application:Beverage, Machinery & Hardware

Packaging Type:Bottles

Packaging Material:Wood

Automatic Grade:Automatic

Driven Type:Electric

Voltage:220V/380V 50hz

Power:2.5KW

Place of Origin:Jiangsu, China (Mainland)

Brand Name:KEYUAN

Model Number:TB-150

Dimension(L*W*H):2000*80*1300mm

Weight:1800KG

Certification:CE ISO SGS

After-sales Service Provided:Engineers available to service machinery overseas

Name:Sticker Labeling Machine

Labeling speed:60-150 Bottles/min

Function:Ahesive Sticker Labeling

Bottle type:Round Bottle Labeler Jar

Material:Stainless Steel

Model:TB-150

Transport Package::Wooden Case

Certification::ISO9001 CE SGS

warranty:two year

Brand::KeYuan Machinery

Basic use
For flat bottles, round bottles, square bottles of single and double side labeling, such as shampoo flat bottles, oil flat bottles, hand sanitizer double side labeling round bottles, two with stickers, double standard to improve production efficiency, widely used in daily chemical, cosmetics, petrochemical, pharmaceutical and other industries.

Working Process
* Core Working principle: The sensor detects the product passes the signal returned to the labeling control system, control system in place and attached to the product label sent upon labeling position, the product flows through the overlying standard device label attached covered on the product, a label attached action is completed.
* Procedure: put the product (which can be accessed line) -> Product delivery -> Products minutes away -> Labeling (device automatically) -> collect the labeling products.

Technical parameters
(The following technical parameters for the standard model, other special requirements and functions can be tailor-made).
 Suitable label length (mm): 20mm ~ 200mm
 Applicable Label width (backing paper width / mm): 20mm ~ 160mm
 Applicable Dimensions (length × width × height / thickness): Length (transport direction): 20mm ~ 250mm
Width (transport width direction): 30mm ~ 90mm
Height: 60mm ~ 280mm
 Applicable standard roll diameter (mm): φ280mm
 Applicable standard roll diameter (mm): φ76mm
 Labeling accuracy (mm): ± 1.0mm
 The standard speed (m / min): Stepping: 5 ~ 19m/min
 Labeling speed (pcs / min): Stepping: 30 ~ 100pcs/min
 Conveyor speed (m / min): 16m/min
 Weight (kg): about 330kg
 Frequency (HZ): 50HZ
 Voltage (V): 220V
 Power (W): 1100W (traction stepper)
 Device dimensions (mm), (L × W × H): 3000mm × 1450mm × 1600mm

Features
powerful, a machine can achieve four kinds of products-sided and double-sided labeling (round bottle, flat bottle, square bottle, shaped bottle);
uses synchronous bilateral rigid plastic chain guide, automatically guarantee a bottle of neutral, the workers put into bottles and bottles of low demand docking lines, greatly reducing the difficulty docking assembly line worker jobs or be stand-alone production, can also be connected to production line;
Configuring spring-capping mechanism to ensure smooth product handling and high bottle itself effectively eliminate errors;
configure automatic bottle institutions, guided bottle automatically before separate spacing, ensure follow guide bottles, transport and labeling of stability;
configure two repeat standard bodies, for the first time to ensure labeling accuracy, the second extrusion coating standard, effectively eliminate bubbles and guarantee label at the head and tail snapping;
intelligent control, automatic photoelectric tracking, with no object no labeling, no label auto-correction and auto-detection function labels, tags and drain to avoid wasting stickers;
equipment is mainly made of stainless steel and high-alloy, in line with GMP production, the overall structure of a solid, elegant appearance.

Zhangjiagang Keyuan Machinery Co., Ltd. is a modern technical enterprise set up to meet the 21st century's development demand regarding beverage packing machinery and all sorts of water treatment facilities. Our company has production experience of more than 20 years. Our company is a professional enterprise producing full sets of beverage packing machinery and all sorts of water treatment facilities, integrating product development, scientific research & design, production, technical service and marketing.

At present, our company provides the following production lines:
Complete sets of gas containing drink production lines
Complete sets of Mineral water and spring water production lines
Complete sets of Pure water production lines
Complete sets of Fruit juice production lines
Bean milk & protein drink production lines
Complete sets of white spirit, soy and vinegar filling production lines

Keyuan would like to move forward together with you and will spare no effort. Welcome to Keyuan!
