Quick Details
Description
- Type:Other, Wrapping Machine
- Condition:New
- Application:Apparel, Beverage, Chemical
- Packaging Type:Bottles, Film
- Packaging Material:Paper, Plastic, Wood
- Automatic Grade:Automatic
- Driven Type:Electric
- Voltage:220V/380V
- Power:20kw
- Place of Origin:Jiangsu, China (Mainland)
- Brand Name:Keyuan
- Model Number:Keyuan
- Weight:500kg
- Dimension(L*W*H):3000*950*1700mm
- Certification:SGS CE
- After-sales Service Provided:Engineers available to service machinery overseas
- Table height:850 mm
- Function:packing machine
- Material:IRON
- Packing speed:10-20 packing /min
- Model:Keyuan
- Machine name:shrink wrapping machine
1.CE Approved,Factory Outlet
2.Servo Moto,Multi-functional
3.Separated PID Temperature Controller
4.Suitable for singly or arbitrary assembled packaging.
5.Cutting-resistance safety on-off device is set for preventing the damage of packed goods
6.If add the waste material recovery device, it can make the packaging mostly beautiful.
7.Adjusted separately for the speed, temperature and length of the packaging, it makes the operation convenient and accuracy.
8.With the control of motor braking, the reaction of the equipment is sensitive.
9.With Chain scraper conveyor, no movement or overturn happened while sending the package.
10. Date coder and ink-jet printer are optional.No need manual work.
11. for Instant noodles/Of instant noodles/Instant noodle/book

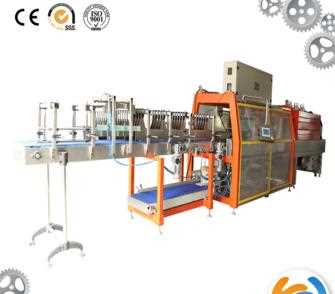

Automatic bottle sleeve shrink wrapping packing machine with Ce certificate--Technical Dates
|
Hot air fan
|
380V/0.55KW/1420r
|
|
Transfer speed
|
0-10m/min
|
|
Transfer power
|
DC220V/200W
|
|
Wrapping power
|
1.8kw/220-240V, 50-60HZ
|
|
Max packing size
|
450*270*330mm
|
|
Min packing size
|
250*60*60mm
|
|
Packing speed
|
10-20 packing /min
|
|
Sealing cutting time
|
0.5-1.5 Second
|
|
Loading
|
25kgs
|
|
Film width/thickness
|
Max 550mm/ 0.03-0.25mm
|
|
Film type
|
PE,POF,PVC,PP
|
Zhangjiagang Keyuan Machinery Co., Ltd. is a modern technical enterprise set up to meet the 21st century's development demand regarding beverage packing machinery and all sorts of water treatment facilities. Our company has production experience of more than 20 years. Our company is a professional enterprise producing full sets of beverage packing machinery and all sorts of water treatment facilities, integrating product development, scientific research & design, production, technical service and marketing.
At present, our company provides the following production lines:
Complete sets of gas containing drink production lines
Complete sets of Mineral water and spring water production lines
Complete sets of Pure water production lines
Complete sets of Fruit juice production lines
Bean milk & protein drink production lines
Complete sets of white spirit, soy and vinegar filling production lines
Keyuan would like to move forward together with you and will spare no effort. Welcome to Keyuan!
