Quick Details
Description
- Condition: New
- CNC or Not: CNC
- Power Source: Mechanical
- Place of Origin: Anhui, China (Mainland)
- Brand Name: Durmark
- Model Number: YSK
- Voltage: Customized
- Power(W): 7.5KW
- Weight: 7000
- Dimension(L*W*H): 1650*1600*3100
- Certification: CE ISO
- Warranty: 1 Year
- After-sales Service Provided: Engineers available to service machinery overseas

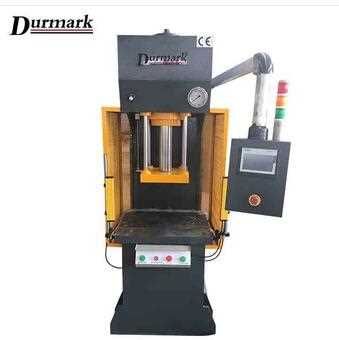

- Product name: CNC hydraulic punching press machine hydraulic stamping machine
- Color: Optional
- Application: Metal forming
- Material: Aluminum, SS, MS, etc
- Safety protection: Photoelectric protection
- Electrical component: Schneider
- Sealing ring: NOK
- Hydraulic valve: Rexroth
- Motor: SIEMENS BEIDE
One kind of multifunctional medium-small hydraulic press.
It can be used in bearings and moulding, also suitable for bearings and sleeves.
At the same time,the machine can complete the technology function of bending, shelling of plate material parts, stretching of simple parts, pressing powder, plastic products, etc.
It is mainly suitable for metal sheet curveting, flattening, stretching, stamping, shaft parts coupling, powder and plastic forming. This product is applied in the machine tool, automotive, motor vehicles, air-conditioned shell, mechanical bearings, powder metallurgy, and plastic industry.
|
No
|
Items
|
Unit
|
Y41-100T
|
|
1
|
Nominal force
|
KN
|
1000
|
|
2
|
Max open height
|
mm
|
800
|
|
3
|
System working pressure
|
MPa
|
25
|
|
4
|
Throat depth
|
mm
|
330
|
|
5
|
Slide stroke
|
mm
|
500
|
|
6
|
Down
|
mm/s
|
60
|
|
7
|
Slide speed Return
|
mm/s
|
60
|
|
8
|
Work
|
mm/s
|
650*800
|
|
9
|
Worktable size
|
mm
|
650*800
|
|
10
|
Dimension
|
mm
|
1450*1000*2800
|
|
11
|
Motor power
|
KW
|
7.5
|
Anhui LIFU Machinery Technology CO., LTD is a comprehensive company specializing in producing forging equipments, drawing and punching mould;
The main products are power press, ironworker, hydraulic press machine, related moulds, specialized in drawing and punching mould;
Mainly applicated in kitchen, household, aviation, light industry, metallurgy, chemical engineering, building, shipping, automobile, electric application, etc;
More than sixty after-service network spreads all over our country to provide best service, which gain great appraise both at home and abroad;
After the establishment of the ahlifu, based on the management of the product quality, we devote ourselves to orchestrate the quality with high-quality, fresh design, reasonable price, and European standard;
In future, We will keep refining on the appearance, structure, theory, configuration, setting, and performance of the products in our company.
