Quick Details
Description
- Condition: New
- CNC or Not: Normal
- Power Source: Mechanical
- Place of Origin: Anhui, China (Mainland)
- Brand Name: Durmark
- Model Number: J21
- Voltage: Customized
- Power(W): 11KW
- Weight: 7000
- Dimension(L*W*H): 1900*1700*2700
- Certification: CE ISO
- Warranty: 1 Year
- After-sales Service Provided: Engineers available to service machinery overseas
- Product name: J23-80T Power press punching machine hole punching machine
- Color: Customizable
- Application: Metal process
- Material: Aluminum, SS, MS, etc
- Safety protection: Photoelectric protection
- Electrical: CHNT
- Body: Cast
- Function: Metal Processing
- CNC feeding system: Available
- Worktable: Inclinable

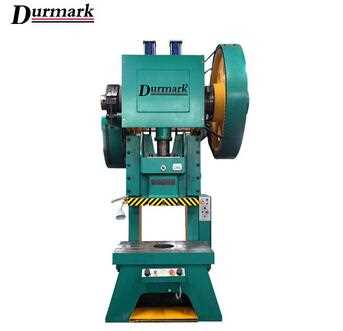

J21 series open press is a sheet metal Universal presses for shearing, punching,
blanking, bending and shallow drawing work. Usually used for ( communications,
computers, household appliances, furniture, vehicles, (cars, motorcycles, bicycles)
metal parts stamping and forming).
Technical parameter
|
NO
|
Name
|
J21-100T
|
|
1
|
Nominal force(KN)
|
1000
|
|
2
|
Nominal force stroke(mm)
|
8
|
|
3
|
Slider stroke(mm)
|
120
|
|
4
|
Slider stroke times(time\min)
|
45
|
|
5
|
Maximum height for die loading
|
290
|
|
6
|
Adjustment range for die loading height
|
80
|
|
7
|
Distance between slider center line and the fuselage
|
300
|
|
8
|
Worktable size
|
500*900
|
|
9
|
Work table blanking hole size
|
D200*200*400
|
|
10
|
Slider bottom size
|
290*350
|
|
11
|
Shank hole size
|
D60*Depth80
|
|
12
|
Distance between columns(mm)
|
380
|
|
13
|
Bolster thickness(mm)
|
100
|
|
14
|
Tilting degree(degree)
|
0
|
|
15
|
Motor(kw)
|
11
|
Main feature
1, With foundry structure for better vibration resistance.
2, Adopt horizontally placed crankshaft, external gear is open and easy for maintenance.
3, The good rigidity of Casting box structure slider
4, Built-in block collapsed overload protection device, the structure is simple, if slider after
overload, fuse collapsed destroyed to protect the machine and mold from damage
5, Four elongated triangular rail, easy for adjustment.
6, Adopts hands and foot switch operation buttons design, it’s easy to activate continuous,
single and adjustment practices.
7, Compatible with the corresponding punch automatic feeding system, which having a feeding error detection, pre-cut and pre-breaking device, low cost and high efficiency.
Anhui LIFU Machinery Technology CO., LTD is a comprehensive company specializing in producing forging equipments, drawing and punching mould;
The main products are power press, ironworker, hydraulic press machine, related moulds, specialized in drawing and punching mould;
Mainly applicated in kitchen, household, aviation, light industry, metallurgy, chemical engineering, building, shipping, automobile, electric application, etc;
More than sixty after-service network spreads all over our country to provide best service, which gain great appraise both at home and abroad;
After the establishment of the ahlifu, based on the management of the product quality, we devote ourselves to orchestrate the quality with high-quality, fresh design, reasonable price, and European standard;
In future, We will keep refining on the appearance, structure, theory, configuration, setting, and performance of the products in our company.
