Quick Details
Description
- Condition: New
- CNC or Not: Normal
- Power Source: Mechanical
- Place of Origin: Anhui, China (Mainland)
- Brand Name: Durmark
- Model Number: JH21
- Voltage: Customized
- Power(W): 7.5KW
- Weight: 7000
- Dimension(L*W*H): 1640*1280*2700
- Certification: CE ISO
- Warranty: 1 Year
- After-sales Service Provided: Engineers available to service machinery overseas
- Product name: carbon alloy C type cnc air operated punching machine price
- Color: Customizable
- Application: Metal process
- Material: Aluminum, SS, MS, etc
- Safety protection: Photoelectric protection
- Electrical: CHNT
- Body: Cast
- Function: Metal Processing
- CNC feeding system: Available
- Worktable: Inclinable

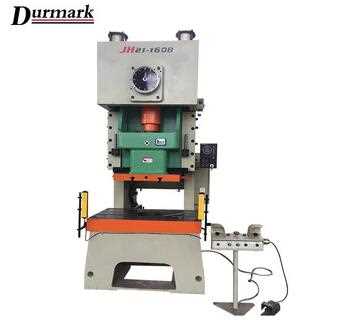

High quality carbon alloy JH21 C type cnc air operated punching machine price
With high rigidity design in machine frame, welded of quality steel sheet and treated by tension elimination, improve stability and reliability of precision of the machine.
Keep the transmission center and machine center in uniformity, guarantee the precision of pressing.
In order to guarantee the machine running in stable and smooth, adopts the design of symmetrical two slid boards with balancer.
The crank, gear, connect bar are oxidized hardening and milled, having super comprehensive mechanical performance and durable function.
Reliable high sensitive clutchtbrake and international up-to-date twin electromagnetic valve, overloading protector can guarantee the precision and safe production.
|
No
|
Name
|
JH21-80T
|
|
1
|
Nominal force(KN)
|
800
|
|
2
|
Nominal force stroke(mm)
|
5
|
|
3
|
Slider stroke(mm)
|
140
|
|
4
|
Slider stroke times(time\min)
|
60
|
|
5
|
Maximum height for die loading
|
320
|
|
6
|
Adjustment range for die loading height
|
80
|
|
7
|
Distance between slider center line and the fuselage
|
300
|
|
8
|
Worktable size
|
580*1000
|
|
9
|
Work table blanking hole size(Upper hole diameter &depth*Below hole diameter)
|
D200*40*D180
|
|
10
|
Slider bottom size
|
420*560
|
|
11
|
Shank hole size
|
D50*Depth80
|
|
12
|
Distance between columns(mm)
|
640
|
|
13
|
Bolster thickness(mm)
|
120
|
|
14
|
Dimension
|
1640*1280*2700
|
|
15
|
Motor(kw)
|
7.5
|
Main Features
1.Steel welded body, tempering treatment, high rigidity, accuracy and stability;
2.Vertical located crankshaft, compact structure;
3.The crankshaft undergoes grinding treatment after high frequency quenching;
4.Lengthened rectangular guideway with a surface of bronze plate;
5.Pneumatic dual balance cylinder, which balances the slide block and punch weight to reduce noise
6.PLC control and imported safety dual valve;
7.Wet clutch and hydraulic overload protector.
Anhui LIFU Machinery Technology CO., LTD is a comprehensive company specializing in producing forging equipments, drawing and punching mould;
The main products are power press, ironworker, hydraulic press machine, related moulds, specialized in drawing and punching mould;
Mainly applicated in kitchen, household, aviation, light industry, metallurgy, chemical engineering, building, shipping, automobile, electric application, etc;
More than sixty after-service network spreads all over our country to provide best service, which gain great appraise both at home and abroad;
After the establishment of the ahlifu, based on the management of the product quality, we devote ourselves to orchestrate the quality with high-quality, fresh design, reasonable price, and European standard;
In future, We will keep refining on the appearance, structure, theory, configuration, setting, and performance of the products in our company.
