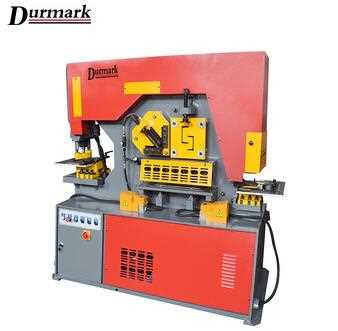

Q35Y-12 Hydraulic Combined punching and shearing machine/punch and shear machine
Ironworker is a combination of metal cutting, punching, shearing, bending and other function, with the function of simple operation, low energy consumption, low maintenance costs. Mainly used in modern manufacturing such as metallurgy, bridges, communication, electric power, military etc. processing material such us channel steel, square steel, steel bar, H-beam steel, and other steel sheet shearing and bending.
Quick Details
Description
- Condition: New
- Place of Origin: Anhui, China (Mainland)
- Brand Name: Durmark
- Model Number: DIW
- Voltage: Customized
- Rated Power: 5.5kw
- Dimension(L*W*H): 1860*800*1990
- Weight: 3800
- Certification: CE ISO
- Warranty: 2 Years
- After-sales Service Provided: Engineers available to service machinery overseas
- Name: Hydraulic punching and shearing machine/punch and shear machine
- Color: Customizable
- Application: Profile steel process
- Main electrical appliance: SCHNEIDER
- Hydraulic part: TAIWAN HNC
- Motor: SIEMENS
- Sealing element: NOK
- Operate way: Foot pedal
- Cooling: Oil temperature cooling device
- Equipped mould: 5 sets
Product Introduction
Ironworker is a combination of metal cutting, punching, shearing, bending and other function, with the function of simple operation, low energy consumption, low maintenance costs. Mainly used in modern manufacturing such as metallurgy, bridges, communication, electric power, military etc. processing material such us channel steel, square steel, steel bar, H-beam steel, and other steel sheet shearing and bending.
Main advantage
1. Imported solenoid valve, effectively guarantee the stability of the machine running, and reduce the failure rate to a minimum.
2. The standard machine configuration is Single action, two cylinders can’t work together. (The double valve structure for choose to make 2 cylinders work together)
3. with imported gear pump, low noise, small size, large flow, smooth operation.
4. Siemens motor, good stability, the failure rate is substantially zero. Meanwhile, effective in energy saving.
5. Adopts Schneider Electric (including circuit breakers, contractors, thermal overload, small relays, the stroke switch, buttons), cable clear enough to reduced electrical fault.
6. Using oil cooling device, open and close freely according to temperature conditions.When the temperature is too high, continuous overload working, it can keep oil temperature normal to ensure the feasibility of high pressure, long time working.
7. With three high-pressure tubing to ensure that no oil leakage
8. Cylinder block use 40 cr high strength alloy material integral forging,ductile iron piston guide sleeve mounted without a gap.
9. Resistance to high temperature (Limit 700 ℃) for a long time to prevent overheating, causing internal cylinder guide sleeve deformation, resulting in cylinder oil leakage.
10. Multi-function manual back gauge to position within one meter length shear angle, channel, round bar, square steel, flat steel and other metal materials.
|
NO.
|
Name
|
Value
|
|
1
|
Model
|
DIW-90
|
|
2
|
Pressure (Ton)
|
90
|
|
3
|
Maximum cutting thickness (mm)
|
20
|
|
4
|
One stroke shears size (D*W)(mm)
|
20*330
10*480
|
|
5
|
Slide stroke(mm)
|
80
|
|
6
|
Stroke frequency (beats/min)
|
12
|
|
7
|
Throat depth (mm)
|
355
|
|
8
|
Punching thickness (mm)
|
20
|
|
9
|
Maximum Punching diameter(mm)
|
30
|
|
10
|
Main motor power (kw)
|
5.5
|
|
11
|
Dimensions (L*W*H)(mm)
|
1860*800*1990
|
