Quick Details
Description
- Condition: New
- CNC or Not: Normal
- Power Source: Mechanical
- Place of Origin: Anhui, China (Mainland)
- Brand Name: DAMA

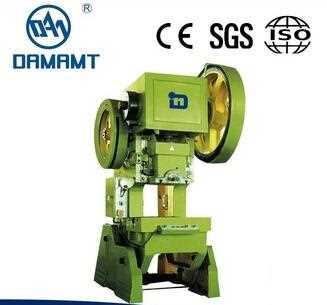

- Model Number: J23-100T power press
- Voltage: 380V
- Power(W): 7.5kw
- Weight: 100ton
- Dimension(L*W*H): 1940*1490*2850mm
- Certification: CE&ISO
- Warranty: 1 year
- After-sales Service Provided: Engineers available to service machinery overseas
- Type: J23-100 mechanical manual sheet metal punching machine punching machin
- Nominal pressure: 1000kn
- Slipper stroke: 100mm
- Sipper stoke times: 40(time/min)
- Max closing height: 300(mm)
- Height adjustment: 80mm
- slipper centre and machine distance:310mm
- Worktable dimension: 570*860mm
- Size of die handle bore: 60*80mm
- Worktable thickness: 80mm
Specifications :
1.High precision ,wide application
2.CE & ISO certification
3.High performance
4.Easy to operation
The machine of whole structure and characteristics :
Series High Precision Presses is one of the new generation of plate process and developed by Maanshan Dama Machinery manufacturing Co;Ltd . ,The press is for cutting, punching, blanking, bending and light stretching work.
2.C-Type Steel-welded frame, high rigidity and less deformation Compact,wide body frame eliminating vibration for improved ide life and machine.
3. Rigid construction guarantees exact die mating,Six-side long rectangle guides of the slide with high moving precision and high accuracy, extending the service life of the die.
4. Highly advanced, rigidly supported gears, operate in oil bath without any noise saves space, reduces, shaft deflection, increases gear life.
5. High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service.
Features :
1.J23 series are general open-tilting power press with simple structure ,reliable performance and easy operation .J23 can adopt rigid turn-key clutch .
2.So, it is convenient for operation and maintenance .J23 can also adopt emergency stop service to make the slider block suddenly stop on the range of 0-135 degree,and the photoelectrical protector device is optional .
3.J23-100B and J23-125 are special among the J23 series .Their main body is cast in iron .The cranked axle is settled vertically .Eccentric sleeve makes easy adjustment .And there is also pneumatic friction.Therefore ,J23-100B and J23-125 enable to work with small impact and sationarity and make slider block stop at any position
Ma'anshan Dama Machinery Manufacturing Co., Ltd. is located in Bowang industrial development zone, the eastern suburb of Ma'anshan, known as "A city of steel",
The transportation is very convenient, with Shanghai-Nanjing, Nanjing-Hangzhou and Nanjing-Gaochun Expressway nearby. It only takes half an hour to drive from Nanjing international Airport. Plus, it is only 28 kilometers away from the entrance of 104 National Highway and the 314 States Road.
The company is specialized in manufacturing Q43 series crocodile-shearing machines, metal hydraulic presses, non-metallic hydraulic pressing machines, hydraulic machines, and other debris and machinery series. Our products are widely in the steel mills, recycling processing industries, metallurgical industries, and many other fields.
Our company is strong in technology, with advanced equipment. With the spirit of "pragmatic innovation, and pioneering", we develop our professionalism. Now our company is actively using CAD, CAM, and CAPP technology, to improve the level of new products. Some of our ancillary products have been exported to Southeast Asia and the surrounding areas, and are unanimously praised by users.
We think and act globally and locally, we buy and sell internationally interactive products with our clients and consumers through advanced online network.
Our endeavor is to provide our consumers with dependable and committed services as well as superior distribution offers. Our objective is to benefit our consumers through a reciprocally valuable relationship. We address our needs by fulfilling yours.
Environmental awareness is also one of our premier concerns. We are going green in an effort to help the environment.
Our company has always adhered to "promote innovation communication, cooperation, the creation of value". We warmly welcome new and old customers' calls for business negotiations!
