Quick Details
Description
- Condition: New
- Place of Origin: Anhui, China (Mainland)
- Brand Name: DM

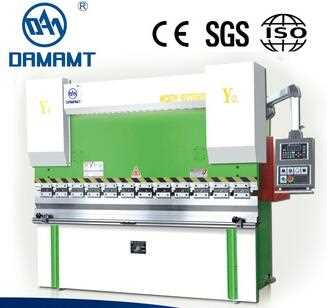

- Model Number: WC67K series NC hydraulic press brake
- Machine Type: Press Brake
- Raw Material: Sheet / Plate Rolling
- Material / Metal Processed: Aluminum
- Power: Cnc
- Automation: Automatic
- Extra Services: Heat Treating
- Certification: ISO 9001:2000
- After-sales Service Provided: Engineers available to service machinery overseas
- Color: red and black
- Norminal pressure: 80T
- Work-bench length: 3200mm
- Poles distance: 2560mm
- Throat depth: 320mm
- Slipper stroke: 200mm
- Max .opening height: 320mm
- Main motor: 7.5Kw
- Oil cylinder dia: 200
- slipper sroke adjust length: 100mm
Features:
1. Special numeric-control system is fitted with mainframe of the bending machine .
2. Muti-work-step programming function is able to achieve an automatic operation and continuous positioning of muti-step procedures ,as well as an automatic precision adjustment for positions of rear stopper and gliding block .
3. The machine is provided with bend counting function ,for a real-time display of processing quantity and power-failure memory of positions of stopper and gliding block ,as well as producers and parameters .
4. Imported ball bearing lead screw and linear guide rail are used for rear stopper ,to ensure the positioning precision of rear stopper,for processing precision of machine to be higher .
Servo motorized Backgauge(standard)
-CNC back gauge system with X axis by AC servo motor driven ball screw shafts and on linear bearings with an accuracy of 0.01mm.
-Back gauge has well enough mechanical strength and rigidity with tank-type gauge structure .
-High-precision ball screw and linear guide-way ,Particular finger-stop design ,enlarge the range of back gauge .
Bending depth adjustment and RAM structure :
-The bending accuracy and consistency of the repeatability are achieved by a simple mechanical system of adjustable depth automatic (digital readout )and motorized (DA41 CNC control ) adjustable .
-Can move the ram up slowly ,which allows the operator to control work piece conveniently.
-Universal fixing-surface of the upper tool can be meeting with the clamping requirement of the tool farthest.
-Hardened and ground standard sectioned top and 4V-Die bottom tools (4x1000mm sections)
The specifications of the bending machine
|
Seri-al NO.
|
Name
|
Numerical value
|
Unit
|
Remark /Number
|
|
80T/3200
|
|
1
|
Bending capacity
|
800
|
KN
|
|
|
2
|
Optional NC Control of Y+X axis or Delem DA41CNC Control of Y+X+Manual R axis
|
|
3
|
Table size length-A
|
3200
|
mm
|
|
|
4
|
Distance between uprights-B
|
2600
|
mm
|
|
|
5
|
Throat depth-D
|
300
|
mm
|
|
|
6
|
Y Axis Slider stroke-C
|
120
|
mm
|
|
|
7
|
Max.open height between table and slider-E
|
320
|
mm
|
|
|
8
|
Worktable height above the ground-F
|
800
|
mm
|
|
|
9
|
X Axis Backgauge Range
|
Travel Range
|
500
|
mm
|
|
|
Max.Speed
|
200
|
mm/sec
|
|
|
10
|
Speed of Ram Stroke
|
High Advance Speed
|
100
|
Mm/sec
|
|
|
Working Speed
|
5-15
|
|
|
High Return Speed
|
90
|
|
|
11
|
Gear Pump
|
Type
|
10MCY14-1B
|
|
|
|
Norminal Flow
|
10
|
Ml/r
|
|
|
Norminal Pressure
|
25
|
Mpa
|
|
|
12
|
Oil Tank Capacity
|
170
|
L
|
|
|
13
|
Main Motor
|
Type
|
Y160M-4
|
|
|
|
Power
|
7.5
|
KW
|
|
|
Rotate Speed
|
1470
|
R/min
|
|
|
14
|
External(LxWxH)
|
3260x2300x2100
|
mm
|
|
|
15
|
Power requirement
|
380V (-15%,+15%) 50Hz ,3PH
|
Ma'anshan Dama Machinery Manufacturing Co., Ltd. is located in Bowang industrial development zone, the eastern suburb of Ma'anshan, known as "A city of steel",
The transportation is very convenient, with Shanghai-Nanjing, Nanjing-Hangzhou and Nanjing-Gaochun Expressway nearby. It only takes half an hour to drive from Nanjing international Airport. Plus, it is only 28 kilometers away from the entrance of 104 National Highway and the 314 States Road.
The company is specialized in manufacturing Q43 series crocodile-shearing machines, metal hydraulic presses, non-metallic hydraulic pressing machines, hydraulic machines, and other debris and machinery series. Our products are widely in the steel mills, recycling processing industries, metallurgical industries, and many other fields.
Our company is strong in technology, with advanced equipment. With the spirit of "pragmatic innovation, and pioneering", we develop our professionalism. Now our company is actively using CAD, CAM, and CAPP technology, to improve the level of new products. Some of our ancillary products have been exported to Southeast Asia and the surrounding areas, and are unanimously praised by users.
We think and act globally and locally, we buy and sell internationally interactive products with our clients and consumers through advanced online network.
Our endeavor is to provide our consumers with dependable and committed services as well as superior distribution offers. Our objective is to benefit our consumers through a reciprocally valuable relationship. We address our needs by fulfilling yours.
Environmental awareness is also one of our premier concerns. We are going green in an effort to help the environment.
Our company has always adhered to "promote innovation communication, cooperation, the creation of value". We warmly welcome new and old customers' calls for business negotiations!
