Quick Details
Description
- Condition: New
- CNC or Not: Normal
- Power Source: Mechanical
- Place of Origin: Anhui, China (Mainland)
- Brand Name: DAMA
- Model Number: J23-100T power press punching machine
- Voltage: 380V
- Power(W): 7.5kw
- Weight: 100ton
- Dimension(L*W*H): 1940*1490*2850mm
- Certification: CE&ISO
- Warranty: 1 year
- After-sales Service Provided: Engineers available to service machinery overseas
- Type: J23-100 mechanical power press punching machine
- Nominal pressure: 1000kn
- Slipper stroke: 100mm
- Sipper stoke times: 40(time/min)
- Max closing height: 300(mm)
- Height adjustment: 80mm
- slipper centre and machine distance:310mm
- Worktable dimension: 570*860mm
- Size of die handle bore: 60*80mm
- Worktable thickness: 80mm
Specifications :
1.High precision ,wide application
2. ISO certification
3.High performance
4.Easy to operation
The machine of whole structure and characteristics :
1. J23 Series High Precision Presses punching machine is one of the new generation of plate process and developed by Maanshan Dama Machinery manufacturing Co;Ltd . ,The punching machine is for cutting, punching, blanking, bending and light stretching work.
2.C Type Steel welded frame, high rigidity and less deformation Compact,wide body frame eliminating vibration for improved ide life and machine.
3. Rigid construction guarantees exact die mating,Six side long rectangle guides of the slide with high moving precision and high accuracy, extending the service life of the die.
4. Highly advanced, rigidly supported gears, operate in oil bath without any noise saves space, reduces, shaft deflection, increases gear life.
5. High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service.
Features :

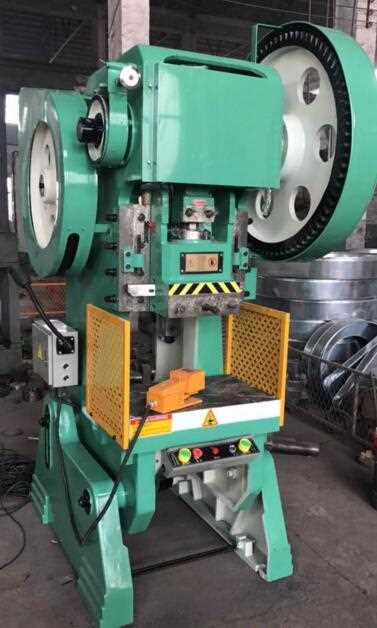

J23 series punching machine are general open tilting power press with simple structure ,reliable performance and easy operation .J23 punching machine can adopt rigid turn-key clutch .
2.So, it is convenient for operation and maintenance .J23 punching machine can also adopt emergency stop service to make the slider block suddenly stop on the range of 0- 135 degree,and the photoelectrical protector device is optional .
3.J23- 100 and J23- 125 punching machine are special among the J23 series .Their main body is cast in iron .The cranked axle is settled vertically .Eccentric sleeve makes easy adjustment .And there is also pneumatic friction.Therefore ,J23- 100 and J23- 125 punching machine enable to work with small impact and sationarity and make slider block stop at any position
Details specification and parameter:
Technical parameters of punching machine:
|
Model and specification
|
J23-16
|
J23-25
|
J23-40
|
J23-63
|
J23-80
|
J23-100
|
|
Nominal pressure (kn)
|
160
|
250
|
400
|
630
|
800
|
1000
|
|
Slipper stoke (mm)
|
50
|
70
|
80
|
80
|
100
|
100
|
|
Slipper stoke times(time/min)
|
110
|
65
|
50
|
50
|
50
|
40
|
|
Max closing height (mm)
|
170
|
200
|
220
|
250
|
270
|
300
|
|
Height adjustment(mm )
|
30
|
30
|
45
|
5
|
60
|
80
|
|
Distance between slipper centre and machine(mm)
|
160
|
200
|
200
|
250
|
260
|
310
|
|
Worktable dimension(mm)
|
320*460
|
350*520
|
390*630
|
420*650
|
470*750
|
570*860
|
|
Size of die handle bore (mm)
|
40*60
|
40*60
|
50*70
|
50*70
|
60*80
|
60*80
|
|
Worktable thickness(mm)
|
45
|
50
|
70
|
70
|
80
|
80
|
|
Slipper underside bore (mm)
|
120*180
|
170*220
|
210*250
|
240*280
|
260*300
|
360*400
|
|
Motor(kw)
|
1.5
|
3
|
4
|
5.5
|
5.5
|
7.5
|
|
Dimension(mm)
|
1130*830*1890
|
1120*860*2200
|
1600*1100*2250
|
1740*1100*2650
|
1765*1265*2650
|
1940*1490*2850
|
