Quick Details
Description
- Condition: New
- Place of Origin: Anhui, China (Mainland)
- Brand Name: DM

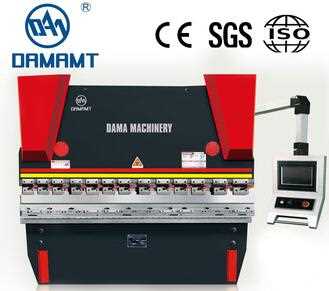

- Model Number: WC67K series NC hydraulic press brake
- Machine Type: Press Brake
- Raw Material: Sheet / Plate Rolling
- Material / Metal Processed: Aluminum
- Power: Cnc
- Automation: Automatic
- Extra Services: Heat Treating
- Certification: ISO 9001:2000
- After-sales Service Provided: Engineers available to service machinery overseas
- Product name: steel door frame bending machines
- Norminal pressure: 100T
- Work-bench length: 3200mm
- Poles distance: 2580mm
- Throat depth: 320mm
- Slipper stroke: 3120mm
- Max .opening height: 370mm
- Main motor: 7.5Kw
- Oil cylinder dia: 200
- slipper sroke adjust length: 80mm
Features:
1. Special numeric-control system is fitted with mainframe of the bending machine .
2. Muti-work-step programming function is able to achieve an automatic operation and continuous positioning of muti-step procedures ,as well as an automatic precision adjustment for positions of rear stopper and gliding block .
3. The machine is provided with bend counting function ,for a real-time display of processing quantity and power-failure memory of positions of stopper and gliding block ,as well as producers and parameters .
4. Imported ball bearing lead screw and linear guide rail are used for rear stopper ,to ensure the positioning precision of rear stopper,for processing precision of machine to be higher .
Servo motorized Backgauge(standard)
-CNC back gauge system with X axis by AC servo motor driven ball screw shafts and on linear bearings with an accuracy of 0.01mm.
-Back gauge has well enough mechanical strength and rigidity with tank-type gauge structure .
-High-precision ball screw and linear guide-way ,Particular finger-stop design ,enlarge the range of back gauge .
Bending depth adjustment and RAM structure :
-The bending accuracy and consistency of the repeatability are achieved by a simple mechanical system of adjustable depth automatic (digital readout )and motorized (DA41 CNC control ) adjustable .
-Can move the ram up slowly ,which allows the operator to control work piece conveniently.
-Universal fixing-surface of the upper tool can be meeting with the clamping requirement of the tool farthest.
-Hardened and ground standard sectioned top and 4V-Die bottom tools (4x1000mm sections)

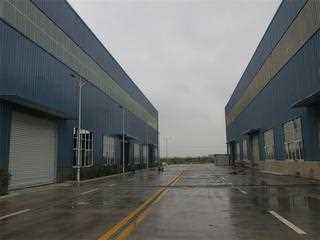

Ma'anshan Dama Machinery Manufacturing Co., Ltd. is located in Bowang industrial development zone, the eastern suburb of Ma'anshan, known as "A city of steel",
