Quick Details
Description
- Place of Origin:Hebei, China (Mainland)
- Brand Name:Roof panel machinery
- Model Number:Roll forming machine
- After-sales Service Provided:Engineers available to service machinery overseas
- Building machine:workshop machine
Fast delivery tiem: 3-5 days
Cheapest price( Provide our cost price)
Quality: ISO CE
Customized order: 1 piece or as customer need.
1).Roller station:12-14 stations
2).Size of machine:about L7.5m*W1.5m*H1.2m
3).Weight of machine:about 5.5T
4).Shaft material: 45# steel outer diameter 70mm
5).Roller material:45#steel
6).Structure:350# steel welding
7).Wall thickness of the main forming machine: 16mm steel plate
8).Main motor power: 3kw
9).Forming speed: 8-10m/min
10).Voltage:380v,50Hz,3 phases
This type of roof sheet has advantage inclouding beautiful, classical appearance and grace taste.
It can be widely used in village, hotel, exhibition, vocation vallage, family construction and outdoor decorate.
|

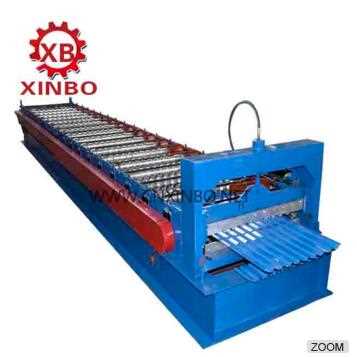

Wall/roof roll forming machine
|
|
Suitable to Process
|
Color steel sheet Galvanized sheet Iron sheet Aluminum sheet Stainless steel sheet
|
|
Width of raw material
|
1000mm/1200mm/12500mm (according to customer requirements)
|
|
Rollers
|
customized
|
|
Dimensions
|
7000*1550*1300mm
|
|
Power
|
5.5+4kw
|
|
Thickness of sheet
|
0.3-0.8mm
|
|
Material of cutting blade
|
Cr12
|
|
Diameter of the roller
|
customized
|
|
Voltage
|
380V(Customized according to customer requirements )
|
|
weight
|
5T
|
|
Productivity
|
10-18m/min
|
|
Control system
|
PLC control
|
