Quick Details
Description
- Condition:New
- Type:Tile Forming Machine
- Tile Type:Colored Steel
- Use:door
- Production Capacity:8-12m/min
- Place of Origin:Hebei, China (Mainland)
- Brand Name:xinbo
- Model Number:xinbo-dpm
- Power(W):32kw
- Voltage:380V 50Hz or as your requirement
- Dimension(L*W*H):6000*800*1200
- Weight:2.5T
- Certification:ISO
- Warranty:18 Months
- After-sales Service Provided:Engineers available to service machinery overseas
- Raw material:PPGI
- Usage:Door panel
- Color:Client's Request

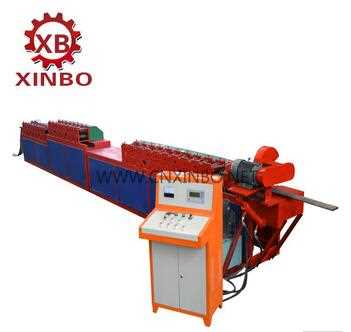

- Product name:Shutter Door panel machine
- Control system:PLC(imported Brand)
- Roller material:45# Forged Steel
- Shaft material:High Grade No.45 Forged
- Cutting blade material:Cr 12 Mov
This Iron Steel Rolling Shutter Door Slats Roll Forming Machine Prices line uses galvanized steel sheet, colored armor plate or aluminum plate as the material plate. The products produced by this Iron Steel Rolling Shutter Door Slats Roll Forming Machine Prices are bright in colored, against fading, resistant to rust, and be widely used in shops, working departments, warehouses, and fire partition. Its strength is three times higher than aluminum alloy door.
Technological process
Uncoiler-Feeding-Leveling-hydraulic punching-Hydraulic cutting-Roll forming-Output table
Technical parameter
|
1.Suitable material
|
Color steel sheet , galvanized steel sheet,aluminum sheet
|
|
2.Installation Dimension (L*W*H):
|
6m*0.8m*1.2m
|
|
3.Main motor power
|
4KW with Cycloidal reducer
|
|
4.Hydraulic station power
|
4KW
|
|
5. Hydraulic oil pump
|
CB-E 310
|
|
6.Thickness of material
|
0.3mm~1.0mm
|
|
7.Diameter of principal axis
|
Φ70-90mm
|
|
8.Material expand width
|
1000-1250mm
|
|
9.Electric tension
|
380V 3phase 50HZ or as the customer's requirements
|
|
10.Material of roller
|
High grade 45# forged steel plated with hard chrome plating
|
|
11.Controlling system
|
PLC
|
|
12.Processing speed
|
8-12m/min(glazed tile is 2-3m/min)
|
|
13.Processing precision within
|
1.00mm (depend on design)
|
|
14.Material of cutting blade
|
Cr12 mould steel with quenched treatment
|
|
15.Kind of drive
|
0.6 inch chain link bearing model 6210
|
|
16.Roller station
|
11-20 Rollers
|
|
17.Roller material
|
high grade 45#steel; Cr12 quenching
|
|
18. Leak frame load-bearing
|
4.6T
|
