Quick Details
Description
- Condition:New
- Type:Tile Forming Machine
- Tile Type:Glazed Steel
- Use:Wall
- Production Capacity:12-20m/min
- Place of Origin:Hebei, China (Mainland)
- Brand Name:frame structure machine

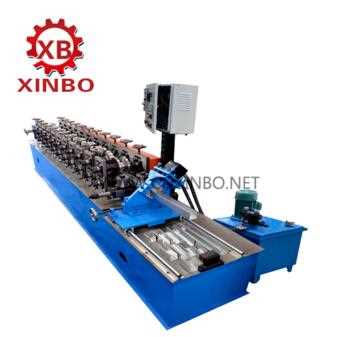

- Model Number:Light keel roll forming machine
- Power(W):8KW
- Voltage:380V or as customer need
- Dimension(L*W*H):6X0.8X1.2M
- Weight:2.8T
- Certification:ISO
- Warranty:18 months
- After-sales Service Provided:Engineers available to service machinery overseas
- Light keel forming machine:keel forming machine
- Raw material:Galvanized Sheet
- Color:Customizable
- Usage:Steel Construction
- Control system:PLC(imported Brand)
- Roller material:45# Forged Steel
- Shaft material:5 Nm Chrome Coated
Fast delivery tiem: 3-5 days
Cheapest price( Provide our cost price)
Quality: ISO CE
Customized order: 1 piece or as customer need.
|
No.
|
Item
|
|
|
1.
|
Processing Material
|
PPGI,GI
|
|
2.
|
Input Width(mm)
|
According to profile
|
|
3.
|
Formed Width(mm)
|
C:100*40,70*40,50*40,37*40
U:100*35,70*35,50*35,37*35
|
|
4.
|
Processing Thickness(mm)
|
0.5-0.7
|
|
5.
|
Material of Rollers
|
Gcr15
|
|
6.
|
Diameter of Shaft
|
50mm
|
|
7.
|
Production Speed
|
12-18m/min
|
|
8.
|
Roller Driven
|
Gear Transmission
|
|
9.
|
Cutting Model
|
Hydraulic Profile Cutting
|
|
10.
|
Length Measurement
|
Encoder
|
|
11.
|
Control Style
|
PLC
|
|
12.
|
Operation Model
|
Button + Touch Screen
|
|
13.
|
Total Power
|
7.5+5.5kw
|
|
14.
|
Voltage
|
380V 50HZ or at buyer's request
|
Botou XinBo import & Export Co.,ltd. is a manufacturer of Roll forming machine, C Z purlin machine, decking floor machine, sandwich panel machine, door and door frame machine and building machine products with well-equipped testing and strong technical force.
With a wide range,good quality,reasonable prices and stylish designs,our produts are extensively used in Building, industry, living and another industries.
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationship and mutual success!
