Quick Details
Description
- Type:Packaging Line
- Condition:New
- Application:Beverage, Food
- Packaging Type:Foil
- Packaging Material:Paper, Plastic
- Automatic Grade:Automatic
- Driven Type:Electric
- Voltage:220V/380V
- Power:1.5KW
- Place of Origin:Jiangsu, China (Mainland)
- Brand Name:Haitel
- Model Number:280B
- Dimension(L*W*H):4000*950*1450mm
- Weight:650kg
- Certification:ISO9001
- After-sales Service Provided:Engineers available to service machinery overseas
Characteristics
1. Dual frequency transformer(option for servo motor),instant bag length setting and cutting without film feeding test run,saving time and film;
2. Friendly operational interface,easy to set up parameters;
3. Self trouble shooting function,easy to identify;
4. High sensible photoeletrical tracking system,digital setup for positioning and precisely cutting and sealing,no law-knife cut rejects;
5. Independent PID temperature control.suits for all types of packaging materials;
6. High sanitation standard,stable performance,easy for maintenance;
7. All controls by program software,easy to upgrade;
8. All the controls are achieved by software,convenient for function adjusting and upgrading.
Application

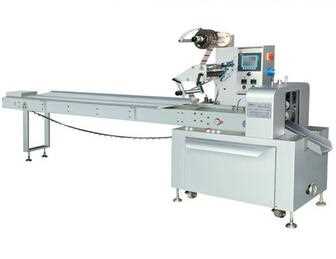

The machine is suitable for packing the regular shape products in box or tray such as moon-cake,popping-rice-cake,pie,chocolate,candy,bread,instant noodle,biscuits,pills,groceries,and industrial parts.
Main technical parameters
|
Model
|
HTL-280B
|
HTL-280C
|
HTL-280D
|
HTL-280E
|
|
film width
|
Max.280mm
|
Max.240mm
|
Max.240mm
|
Max.180mm
|
|
Bag length
|
90-220 or 150-330mm
|
65-190 or 120-280mm
|
90-220mm
|
50-115 or 45-90mm
|
|
Bag width
|
50-140mm
|
30-110mm
|
30-110mm
|
30-80mm
|
|
Product height
|
Max.40mm
|
Max.40mm
|
Max.55mm
|
Max.35mm
|
|
Rewind diameter
|
300mm
|
|
Packing speed
|
50-250bags/min
|
40-280bags/min
|
40-280bags/min
|
60-350bags/min
|
|
Voltage
|
220V/380V 50Hz
|
|
Power
|
2.5kw
|
|
Dimension
|
(L)4000 x (W)950 x (H)1450mm
|
|
Total Weight
|
650kg
|
Located in Dongtai, our company is a professional manufacturer of automatic packaging machinery and machinery for producing foodstuff, candies and egg rolls. We have strong power in technology and are equipped with advanced instrument. We also have accomplished personnel specializing in developing, designing, manufacturing and sale. Our factory has got the ISO9000 certificate. We continue to enhance the quality and management levels, and have fruitful incomings by technology innovation. Our company's products have been issued many patents. In the business of its kind, we have won the titles of "China Most Preferred Packaging Machinery Product", "Customers' Most Preferred Product" and "Qualified Product of China Selective Quality". Our main products sell well and are famous in domestic and overseas markets.
The business principal of our factory is "Customer First and Faith Foremost" and what we pursue is "To meet the requirement of customers and do better for them". Businessmen from home and abroad are welcomed to our factory for business talks and work hand in hand for the prosperous future.
