Quick Details
Description
- Type:Other, automatic grain packing machine
- Condition:New
- Application:Chemical, Commodity, Food, Machinery & Hardware, Medical
- Packaging Type:Bags, Pouch, Stand-up Pouch
- Packaging Material:Paper, Plastic
- Automatic Grade:Automatic
- Driven Type:Electric
- Voltage:380V
- Power:2300W
- Place of Origin:Jiangsu, China (Mainland)
- Brand Name:HAITEL
- Model Number:HTL-V420
- Weight:2000 kg
- Dimension(L*W*H):6300*2400*3720 mm
- Certification:CE ISO9001:2000
- After-sales Service Provided:Engineers available to service machinery overseas

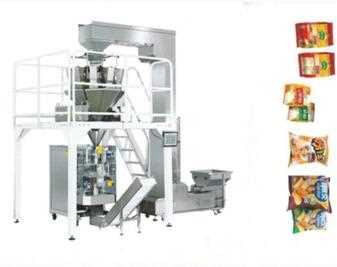

- Packing machine:automatic grain packing machine
- Machine:automatic grain packing machine
Characteristics:
1. PLC control with stable, reliable biaxial highaccuracy output and color touch screen, bag-making, measuring, filling, printing, cutting, finished in one operation.
2. Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.
3. Film-pulling with vacuum double belt: less pulling resistance, bag is formed in good shape with better appearance, belt is resistant to be worn-out.
4. Double servo control, high precision orientation, size more nicety.
5. External film releasing mechanism; simpler and easier installation of packing film.
6. Adjustment of bag deviation just needed to be control the touch screen. Operation is very simple.
7. Close down type mechanism, defending powder into inside of machine.
8. Multihead weighter measuring, packing weight more precision, product cost more low.
Application:
Suitable for packing of several of granule, slice, stripe, such as candies, potato chips, shrimp chip, jelly, peanut, hardware, etc.
Main technical:
|
Model
|
HTL-V420
|
HTL-V520
|
HTL-V680
|
|
Bag length (mm)
|
80-300
|
80-400
|
100-480
|
|
Bag width (mm)
|
50-200
|
80-250
|
180-320
|
|
Max width of roll film (mm)
|
420
|
520
|
680
|
|
Packing speed (bags/min)
|
5-60
|
5-50
|
5-50
|
|
Measuring range (ml)
|
150-1200
|
3000 (Max)
|
6000 (Max)
|
|
Air consumption (MPa)
|
0.65
|
0.65
|
0.65
|
|
Gas consumption (m3/min)
|
0.3
|
0.4
|
0.4
|
|
Power voltage
|
220V
|
220V AC/50Hz
|
220V AC/50Hz
|
|
Power (KW)
|
2.2
|
4
|
5
|
|
Dimension (L*W*H) (mm)
|
1320*950*1360
|
1150*1795*1650
|
1780*1350*1950
|
|
Weight (kg)
|
540
|
600
|
900
|
