Quick Details
Description
- Type:Multi-Function Packaging Machine
- Condition:New
- Function:Filling, Sealing, Wrapping, automatic coffee powder packing machine
- Application:Food, Machinery & Hardware, Medical, Other
- Packaging Type:Bags, automatic coffee powder packing machine
- Packaging Material:Wood, Other
- Automatic Grade:Automatic
- Driven Type:Electric
- Voltage:380V
- Power:5KW
- Place of Origin:Jiangsu, China (Mainland)
- Brand Name:HTL
- Model Number:HTL-D420
- Dimension(L*W*H):1320*950*1360mm
- Certification:CE/ISO9001
- After-sales Service Provided:Engineers available to service machinery overseas
- Packing speed:About 30-60 bags/min
- Bag size:(L) 80-300 mm; (W)80-180 mm
- Maximum film width:420 mm

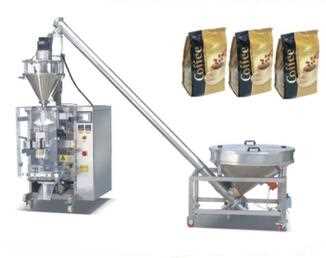

- Name:1kg coffee powder bag packing machine
Characteristics:
1. Film drawing down system controlled by servo motor.
2. Automatic film rectifying deviation function.
3. Various alarm system to reduce waste.
4. It can complete feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, finished product delivery when it equips with feeding and measuring equipment.
5. The way of bag making: The machine can make pillow-type bag and standing-bevel bag, punch bag or according to customer’s requirements.
Application:
It is suitable for packing of several of granule, powder, such as sugar, salt, coffee, etc.
Main technical parameters:
|
Model
|
HTL-D420
|
|
Packing speed
|
About 30-60 bags/min. It is according to quality of wrapping film and materials.
|
|
Accuracy
|
≤1.5%
|
|
Bag size
|
(L) 80-300 mm; (W)80-180 mm
|
|
Maximum film width
|
420 mm
|
|
Filling range
|
50-1000 g
|
|
Film thickness
|
0.04-0.09 mm
|
|
Packing material
|
Thermal composite materials, such as BOPP/CPP, PET/AL/PE
|
|
Air consumption
|
0.8 MPa, 0.4 m³/min
|
|
Total power
|
5 KW
|
|
Voltage (V)
|
Four wires, three phases, 380V, 50Hz.
|
|
Air compressor
|
Not less than 1 CBM
|
|
Total height
|
2528 mm
|
|
Gross weight
|
900 kg
|

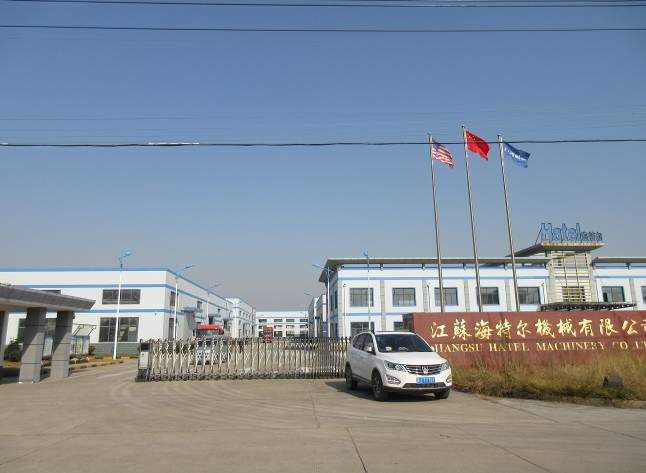

Located in Dongtai, our company is a professional manufacturer of automatic packaging machinery and machinery for producing foodstuff, candies and egg rolls. We have strong power in technology and are equipped with advanced instrument. We also have accomplished personnel specializing in developing, designing, manufacturing and sale. Our factory has got the ISO9000 certificate. We continue to enhance the quality and management levels, and have fruitful incomings by technology innovation. Our company's products have been issued many patents. In the business of its kind, we have won the titles of "China Most Preferred Packaging Machinery Product", "Customers' Most Preferred Product" and "Qualified Product of China Selective Quality". Our main products sell well and are famous in domestic and overseas markets.
The business principal of our factory is "Customer First and Faith Foremost" and what we pursue is "To meet the requirement of customers and do better for them". Businessmen from home and abroad are welcomed to our factory for business talks and work hand in hand for the prosperous future.
