Quick Details
Description
- Condition: New
- Application: Pipe
- Plastic Processed: PVC
- Screw Design: Double-screw
- Automatic Grade: SIEMENS
- Place of Origin: Jiangsu, China (Mainland)
- Brand Name: LIANSHUN
- Model Number: SJSZ
- Voltage: 380V
- Power(W): 55kw
- Dimension(L*W*H): 29.1m*2.1m*2.5m
- Weight: 5-15T
- Certification: CE&ISO:9001
- After-sales Service Provided: Engineers available to service machinery overseas
- Name: profile machine
- Inventer: ABB
- Color: as clients
- cooling system: fan cooling
- Temperature system: SIEMENS
- Low valtage: SIEMENS
- Screw: 38 Cr MoAlA
- Origin: Zhangjiagang
- Heater: cast Aluminum heater
- Gearbox: hardened tooth
Application:

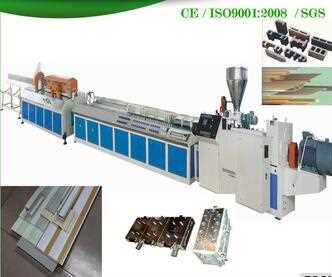

This production line adopts international technology, uses PE, PP, PVC, PS or other plastics compounding with nature fiber powder as the raw material, employs high efficiency conical twin screw extruder ,mould .vacuum calibration table ,tractor and cutter.
The profile products are popularly used as the building board, partition wall aboard, plank on storage rack and furniture board, etc.
|
Model
|
YF180
|
YF240
|
YF300
|
YF400
|
YF500
|
YF600
|
YF800
|
YF1000
|
YF1250
|
|
Max. width of product(mm)
|
180
|
240
|
300
|
400
|
500
|
600
|
800
|
1000
|
1250
|
|
Extruder model
|
SJSZ55/110
|
SJSZ65/132
|
SJSZ65/132
|
SJSZ65/132
|
SJSZ80/156
|
SJZ80/156
|
SJZ80/156
|
SJZ92/188
|
SJZ92/188
|
|
Max. extrusion capacity(kg/h)
|
150
|
250
|
250
|
250
|
360
|
360
|
360
|
600
|
600
|
|
Extruder power(kw)
|
22
|
30/37
|
30/37
|
30/37
|
55
|
55
|
55
|
110
|
132
|
|
Cooling water(M3/h)
|
5
|
7
|
7
|
8
|
10
|
12
|
13
|
15
|
18
|
|
Compressed air(M3/min)
|
0.2
|
0.3
|
0.3
|
0.3
|
0.4
|
0.5
|
0.6
|
0
|
