Quick Details
Description
- Condition: New
- Application: Plates, Drain Pipe
- Plastic Processed: PVC
- Screw Design: Double-screw
- Automatic Grade: full automatic
- Place of Origin: Jiangsu, China (Mainland)
- Brand Name: YS
- Model Number: SJSZ80/156 SJSZ92/18
- Voltage: 380V/50HZ
- Power(W): 55-320KW
- Dimension(L*W*H): 25m*2.5m*2.5m
- Weight: 1-20T
- Certification: CE/ISO
- After-sales Service Provided: Engineers available to service machinery overseas, Engineers available to service
- screw material: 38CrMoAlA nitriding
- processing type: Extruding
- Contactor: Schnerder
- inverter: ABB
- operation system: manual and automatic
- PLC: SIEMENS
- Cooling: water recycling and fan
- Warranty: one year

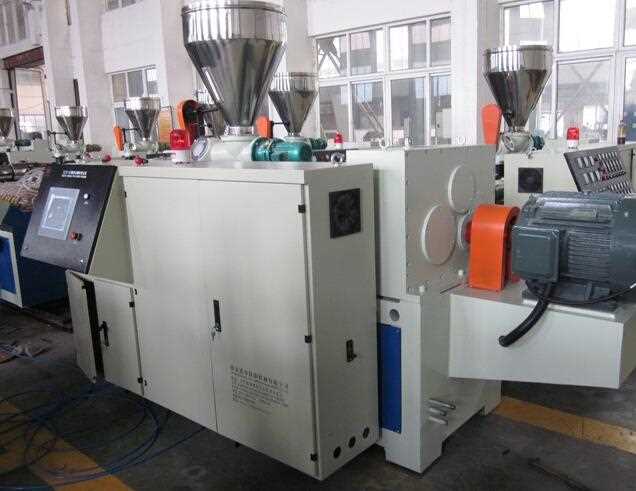

Lianshun machinery PVC/PP/PE wood plastic composite machine
1, screw and barrel: 38CrMoAlA, nitriding
2, energy and labor saving
3, formula support
The WPC door machine is used to produce the wpc door,(door width: 600mm, 750mm, 800mm, 900mm, 1000mm, thickness: 25-40mm, hollow or solid) plastic can be PE or PP or PVC.
A whole extrusion line includes the following units:
1, material screw feeder,
2, conical twin-screw extruder,
3, calibration table,
4, haul-off and cutter,
5, stacker.
Auxiliary machine
1, material mixer
2, matrials compounding machine
3, door surface processing mahcine---sanding, embossing, laminating, hot stamping, carving
4, crusher and miller for reusing the water wpc profiles
Properties
1),The screws and barrel are made of 38CrMoAlA, with nitriding processing.
2),reducer: hard gear teeth surface ,
3),main motor and forced feeder: use inverter for speed adjustment,
4),height of calibration table can be adjusted easily from control panel.
5), cutter with alloy saw and dust collector.
6), SIEMENS electric parts
7), free production formula technology for cooperation
8), turn-key project cooperation.
Available extruder models
|
Item
|
SJZ-45
|
SJZ-51
|
SJZ-65
|
SJZ-80
|
SJZ-92
|
|
Diameter of screw(mm)
|
45/100
|
51/105
|
65/132
|
80/156
|
92/188
|
|
Screw rotation speed(rpm)
|
1-37
|
1-32
|
1-34.7
|
1-36.9
|
1-32.9
|
|
Effective length of screw(mm)
|
985
|
1070
|
1440
|
1800
|
2500
|
|
Power of main motor (KW)
|
15
|
18.5
|
37
|
55
|
90
|
|
Barrel heating power (KW)
|
12
|
18
|
24
|
36
|
86.8
|
|
Production capacity(kg/h)
|
50
|
50-80
|
80-150
|
180-260
|
300-450
|
|
Center height(mm)
|
1000
|
1000
|
1000
|
1000
|
1000
|
|
Net weight(kg)
|
2800
|
3200
|
4000
|
5000
|
10000
|
Zhangjiagang city yongshun degradable plastic machinery co., LTD, specializes in producing plastic machines, including pipe machines, sheet machines, profiled machines, recycling machines and auxiliary machines. After more than four years development, the technologies are developed and the functions of machines are stable, especially for plastic pipe production lines and recycling machines. The main products of our company have been exported to different countries and have a good reputation. We welcome customers from all over the world to cooperate with us. Please do not hesitate to contact us if you have further inquiry. We look forward to hearring from you soon in order to provide you with our best of service.
