• WPC Machinery as Wood Palstic Composite Door-panel Machine

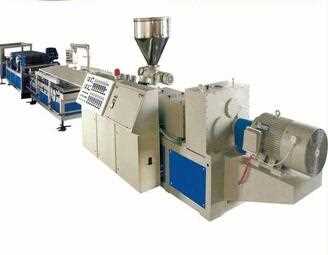

WPC Machinery as Wood Palstic Composite Door-panel Machine

With special designed screw ,barrel.moule and producing process ,this line can produce PE PP PVC and wood powder profile.This is a new kind of environmental freindly building material.Mixing the plastic ,wood powder ,foam agent and other additives.After high temperature and high pressure extrusion ,the products can be used for pallets ,packing plates ,windows and door frames ,decoration panels and etc .

Product Details

Quick Details

Description

  • Processing Type: Other
  • Condition: New
  • Product Type: PE/PP profile
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: YONGSHUN
  • Model Number: SJSZ
  • Voltage: 380V/50HZ
  • Power(W): 80-150kw
  • Dimension(L*W*H): 28*5*3M
  • Weight: 5-15T
  • Certification: CE/ISO/SGS
  • Warranty: 1year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Name: PE + WOOD profile machine
  • Inventer: ABB
  • Color: as clients
  • cooling system: fan cooling
  • Temperature system: Omron
  • Low valtage: SIEMENS
  • Screw: 38 Cr MoAlA
  • Origin: Zhangjiagang
  • Heater: cast Aluminum heater
  • Gearbox: hardened tooth



The production line of products can be used for the production of building templates, building blocks toys with plates, trays, boxes, pallets and other packaging equipment; the end of plank, sleepers and other storage supplies, outdoor flooring, railing, outdoor chairs, garden supplies; outdoor flooring, sun rooms, signage, flow box, stadium chairs, and other load-bearing beam.

Production line model

SJSZ-100

SJSZ-240

SJSZ-300

Calibration table length(mm)

4000

6000

9000

Max profile width(mm)

150

240

300

hauling speed(m/min)

0-8

0-6

0-5

Total power(kw)

70

95

110



Description

With special designed screw ,barrel.moule and producing process ,this line can produce PE PP PVC and wood powder profile.This is a new kind of environmental freindly building material.Mixing the plastic ,wood powder ,foam agent and other additives.After high temperature and high pressure extrusion ,the products can be used for pallets ,packing plates ,windows and door frames ,decoration panels and etc .



The production line with the following feathers:

1)This technology is suitable to produce WPC products at high value with variety of plastic and nature fiber,and the material is 90% of waste plastic and waste natural fiber.

2)With scientific and reasonable technology,the machine has high efficiency and runs stably

3)The parallel twin screw extruder is used to mix the wood and plastic,and get good homogeneous melt.

4)This is one step WPC extrusion technology,which saves energy.

5)This production line can produce wpc products of different specifications only to change mold.





Complete process:

Milling → Mixing → Extruding → Mold → Product → Calibrating → Cutting off→ Embossing or polishing→ Final product

Main technical information:

Description

Parameters

Product size

according to customer's requirements

Material

Recycled PP/PE+wood powder+additives

Production line speed

0.5-1.5m/min

Max. output

240kg/h

Total installed power

125kw

Actual energy consumption power

85kw

WPC Machinery as Wood Palstic Composite Door-panel Machine

Company Profile

Zhangjiagang city yongshun degradable plastic machinery co., LTD, specializes in producing plastic machines, including pipe machines, sheet machines, profiled machines, recycling machines and auxiliary machines. After more than four years development, the technologies are developed and the functions of machines are stable, especially for plastic pipe production lines and recycling machines. The main products of our company have been exported to different countries and have a good reputation. We welcome customers from all over the world to cooperate with us. Please do not hesitate to contact us if you have further inquiry. We look forward to hearring from you soon in order to provide you with our best of service.
