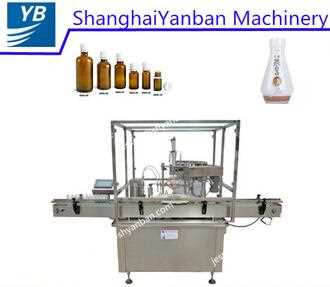

YB-YG4 500kg automatic 4 head filling machine for liquid
This machine is mainly used for syrup, honey, juice, wine, drinks, cod-liver oil, olive oil, essential oil, facial cleanser, shower gel, hair oil, ink, disinfectant, injection, laundry detergent and various medical liquid filling and capping.
Quick Details
Description
- Type: Filling Machine
- Condition: New
- Application: Beverage, Food, Medical
- Packaging Type: Bottles
- Packaging Material: Glass, Plastic
- Automatic Grade: Automatic
- Driven Type: Electric
- Voltage: 220V
- Power: 1.6 KW
- Place of Origin: Shanghai, China (Mainland)
- Brand Name: YB
- Model Number: YB-YG4
- Dimension(L*W*H): L2000 * W1100 * H1650MM
- Weight: 500kg
- Certification: CE
- After-sales Service Provided: Engineers available to service machinery overseas
- Model: YB-YG4
- Filing nozzle: 4
- Filling volume: 50-1000ml
- Filling speed: 10-35 bottles/min
- Filling accuracy: ≤ ±1%
- Capping rate: ≥ 98%
- Total power: 1.6 KW
- Power supply: 1 Ph. AC220V, 50/60Hz
- Machine size: L2000 *W1100 *H1650mm
- Net weight: 500kg
Usage:
This machine is mainly used for syrup, honey, juice, wine, drinks, cod-liver oil, olive oil, essential oil, facial cleanser, shower gel, hair oil, ink, disinfectant, injection, laundry detergent and various medical liquid filling and capping.
Function and features:
1.Adopts plunger type metering pump filling, high precision; The structure of pump adopts fast
disassembly institutions, easy to clean and disinfect.
2.PLC control system, color touch screen display.
3.This machine has function of no bottle no filling and automatic counting.
4.The filling nozzle was equipped with drip-proof device.
5.When filling liquid, the filling nozzle dive into the bottom of bottle, rising slowly, it can effectively prevent bubbles.
6.Machine body and the parts contacting liquid are made of stainless steel, full compliance with GMP standard.
|
Model
|
YB-YG4
|
YB-YG6
|
|
Filing nozzle
|
4
|
6
|
|
Filling volume
|
50-1000ml
|
50-1000ml
|
|
Filling speed
|
10-35 bottles/min
|
20-70 bottles/min
|
|
Filling accuracy
|
≤ ±1%
|
≤ ±1%
|
|
Capping rate
|
≥ 98%
|
≥ 98%
|
|
Total power
|
1.6 KW
|
1.9 KW
|
|
Power supply
|
1 Ph. AC220V, 50/60Hz
|
1 Ph. AC220V, 50/60Hz
|
|
Machine size
|
L2000 × W1100 × H1650mm
|
L2300 × W1300 × H1650mm
|
|
Net weight
|
500kg
|
700kg
|
