Fully-automatic Candies/ Potato Chips Filling Packing Machine
Suitable for measuring and packing candies, pulses, puffed food, salt, tea, coffee, chocolates, grains, spices, beans, biscuit, roasted seeds and nuts, rice, dog food, sugar, deep-frozen food, and so on .
Quick Details
Description
- Type: Filling Machine
- Condition: New
- Application: Food
- Packaging Type: film roll
- Packaging Material: Wood
- Automatic Grade: Automatic
- Driven Type: Electric
- Voltage: 220V
- Power: 3KW
- Place of Origin: Shanghai, China (Mainland)
- Brand Name: YB
- Model Number: YB-420
- Certification: CE
- After-sales Service Provided: Engineers available to service machinery overseas
- filling capacity: 25-80bags/min
- certification: CE certificate
- screen: color touch screen
- controller: PLC control
- lanuage: English
- warranty: 1 year
Usage:
Suitable for measuring and packing candies, pulses, puffed food, salt, tea, coffee, chocolates, grains, spices, beans, biscuit, roasted seeds and nuts, rice, dog food, sugar, deep-frozen food, and so on .
Main function/features:
1. Equipped safely protection, comply with firm’s safety Management requires
2. Use intelligent temperature controlling machines to have accurate temperature Control ensure the artistic and neat seal.
3. Use PLC Servo System or pneumatic control system and super touch screen to form the drive control center; maximize the whole machine’s control precision, reliability and intelligentized level.
4. This machine completes the whole packing procedure of measuring, loading materials, bagging, date printing, charging (exhausting) and products transporting automatically as well as counting.
5. Touch screen can store the technical parameters of various kinds of products, no need to reset while products changing.
Technical parameter: (packing machine)
|
Making bag size
|
L: 100-350mm, W: 80-250mm
|
|
Packing speed
|
25-70 bags/min
|
|
Electric source and power
|
AC220V, 50/60Hz, 5kw
|
|
Compressed air costs
|
6-8kg/m2, 0.25m3/min
|
|
Machine weight
|
700KG
|
|
Machine dimension
|
L1800×W1350×H1700mm
|
Technical parameters: (10 heads electronic weigher)
|
Measure number
|
10 units
|
|
Range of single weighing
|
10g-1000g
|
|
Quantity precision
|
0.1-1.5g
|
|
Average tolerance of single bag
|
0.2-0.7g
|
|
Weighing speed
|
70bags/min
|
|
Hopper capacity
|
1300ml
|
|
Net/gross
|
300/370Kg
|
|
Overall size
|
(L)1400*(W)1130*(H)1120
|

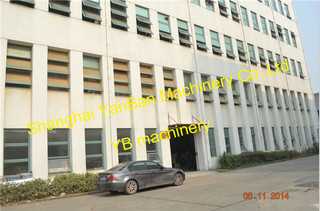

Shanghai Yanban Machinery Co., Ltd is located in Nanxiang Industrial Zone of Shanghai.
We have more than 15 years experience to manufacture and export filling and packaging machines.
We are an integrated enterprise specialized in research, development, design, manufacturing and technical services.
Our company has developed a variety of different types of automatic filling and packaging machines which are used for food, medical, hardware, metal appliance and household item industries.
We have sold our products well in domestic market and North America, South America, Central Asia, Southeast Asia and Africa.
We cherish our brand formed by our years of hard work. Treasure every hard-earned honor. We are never lost at applause and never hesitate. To change honor into progressive power, we can get more success step by step.
