Quick Details
Description
- Type: Filling Machine
- Condition: New
- Application: Apparel, Chemical, Food, Medical
- Packaging Type: Bottles
- Packaging Material: Glass
- Automatic Grade: Automatic
- Driven Type: Electric
- Voltage: 220V
- Power: 2.5KW
- Place of Origin: Shanghai, China (Mainland)
- Brand Name: YB
- Model Number: YB-Y4
- Dimension(L*W*H): L1900 * W1800 * H1600MM
- Weight: 500kg
- Certification: CE
- After-sales Service Provided: Engineers available to service machinery overseas
- product name: filling capping machine
- speed: 30-60bottle/min
- filling heads: 4
- function: filling, capping, labeling
- control: PLC
- requirement: GMP
- power: 220v,50/60hz
- total voltage: 2.5kw
- material: stainless steel
- machine dimention: L1900 * W1800 * H600MM
Usage:

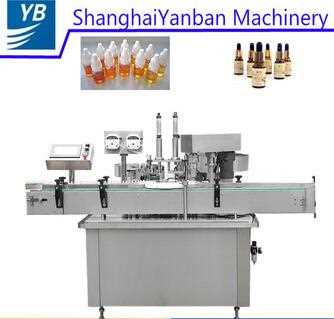

This machine is mainly suitable for automatic filling, stoppering and screw capping of electronic cigarette liquid, eye drops, nail polish, eye shadow, essential oil, with filling volume less then 50 ml.
Machine features:
1.This machine adopts constant torque screw caps, equipped with automatic sliding device, to prevent the cap damage.
2.Peristaltic pump filling, measuring precision, convenient manipulation.
3.Filling system has function of suck back, avoid liquid leak through.
4.Color touch screen display, PLC control system, no bottle no filling, no adding plug, no capping.
5.Adding plug device can choose fixed mold or mechanical vacuum mold.
6.Machine body is made by 304 stainless steel, easy to dismantle and clean, full compliance with GMP requirements.
Technique parameter
|
Model
|
YB-Y2
|
YB-Y4
|
|
Capacity
|
15-40 bottles/min
|
30-80 bottles/min
|
|
Filling volume
|
10-50ml
|
10-50ml
|
|
Filling head
|
2
|
4
|
|
Pass rate
|
≥ 98%
|
≥ 98%
|
|
Power supply
|
1ph 220V, 50/60Hz
|
1ph 220V, 50/60Hz
|
|
Power
|
2.5 KW
|
2.8 KW
|
|
Overall dimension
|
1900 × 1800 ×1600mm
|
2200 × 2100 × 1600mm
|
|
Net weight
|
500kg
|
650kg
|
Shanghai Yanban Machinery Co., Ltd is located in Nanxiang Industrial Zone of Shanghai.
We have more than 15 years experience to manufacture and export filling and packaging machines.
We are an integrated enterprise specialized in research, development, design, manufacturing and technical services.
Our company has developed a variety of different types of automatic filling and packaging machines which are used for food, medical, hardware, metal appliance and household item industries.
We have sold our products well in domestic market and North America, South America, Central Asia, Southeast Asia and Africa.
We cherish our brand formed by our years of hard work. Treasure every hard-earned honor. We are never lost at applause and never hesitate. To change honor into progressive power, we can get more success step by step.
