Quick Details
Description
- Brand Name:WONDEC
- Model Number:WC-CNC-95
- Model:WC-CNC-95
- Input Power:2.25kw
- Power Supply:380V/50Hz
- Min. Diameter Of Bending:100mm
- Max.Width of Profile:95mm
- Max. Diameter of Rolls:180mm
- Hydraulic Cylinder Pressure:160KN
- Roller-holding Shaft Diameter:40mm
- Top Roll Runout:180mm
- Overall Dimension:1500*820*1560mm

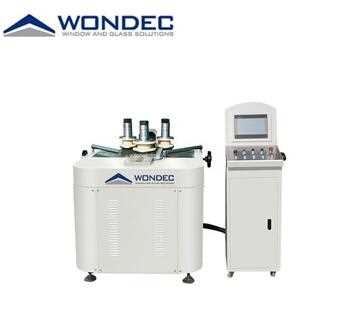

Main Features of Aluminum Window Profile Bending Machine
1) Applicable to all kinds of metal profiles or profiles (aluminum doors and windows profiles, insulation broken bridge profiles), metal profiles, computer control. Make the operation more simple and convenient .
2) Imported computer control system .
3) Dedicated arc bending software .
4) Can bend the C-type, U-shaped, oval, spring and other shapes .
5) As a result of the use of CNC hydraulic system, positioning accuracy <0.02mm .
6) Its product performance to the European advanced CNC arc bending machine standards .
7) Ultra-low pressure self-test rebound system, forming a closed space in the deformation area, minimizing deformation of the profile distortion
|
Specification For Aluminum Window Profile Bending Machine
|
|
Main performance parameters
|
Input Power
|
kw
|
2.25
|
|
Power Supply
|
V/Hz
|
380/50
|
|
Min. Diameter of Bending
|
mm
|
100
|
|
Max. Width of Profile
|
mm
|
95
|
|
Max. Diameter of Rolls
|
mm
|
180
|
|
Hydraulic Cylinder Pressure
|
KN
|
160
|
|
Roller-holding Shaft Diameter
|
mm
|
40
|
|
Rotation Speed of Shaft
|
r/min
|
1~8
|
|
Positioning Precision
|
mm
|
0.05
|
|
Top Roll Rout
|
mm
|
180
|
|
Overall Dimension
|
mm
|
1500*820*1560
|
JINAN WONDEC MACHINERY CO., LTD.
is a famous manufacturer of insulating glass machines, PVC door window machines and aluminum door window machines. WONDEC also sell glass finely processing machines, glass cutting machines, laminated glass (EVA) machines, thermal-break machines, PVC profiles and pipes extrusion machines, recycling machines and others. WONDEC H.Q. is in Jinan, China. WONDEC has sold machines to Canada, Australia, South Africa, Brazil, Jordan, Lebanon, India, Nepal and other more than 70 countries.
Technical Support
WONDEC has one technical team with rich experience which can provide the best machines solutions according to customers' need. WONDEC also manufacture machines as customized order.
After Sale Service
WONDEC has a special team which can install machines and answer for machines problems professionally.
Quality Control
WONDEC manufacture machines as customers' country's voltage and frequency. Each machine is quality checked by three engineers. WONDEC machines are with high quality spare parts.
