Quick Details
Description
- Brand Name:Wondec
- Model Number:SSJ06-3700

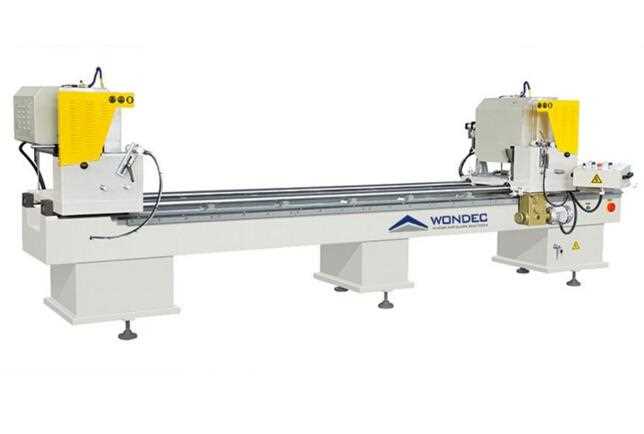

- Product name:Aluminium UPVC Window Double Head MItre Saw Cutting Making Machine
- Model:SSJ06-3700
- Input Power:3Kw
- Power Supply:380V/50Hz
- Air Pressure:0.5~0.8Mpa
- Air Consumption:50L/min
- Motor Rotary Speed:3000r/min
- Cutting Width:120mm
- Cutting Height:120~170mm
- Overall Dimension:5000*1300*1650mm
|
SPECIFICATIONS FOR ALUMINIUM WINDOW DOUBLE HEAD CUTTING SAW
|
|
Main performance parameters
|
Input Power
|
Kw
|
3
|
|
Power Supply
|
V/Hz
|
380/50
|
|
Air Pressure
|
Mpa
|
0.5~0.8
|
|
Air Consumption
|
L/min
|
50
|
|
Motor Rotary Speed
|
r/min
|
3000
|
|
Cutting Height
|
mm
|
120~170
|
|
Cutting Width
|
mm
|
120
|
|
Cutting Length
|
mm
|
490*3600
|
|
Overall Dimension
|
mm
|
5000*1300*1650
|
Main Features of Aluminium Window Double Head Cutting Saw
1) Used for aluminum profile cutting .
2) The linear guiding pair ensures steady processing accuracy .
3) Saw blade rotates smoothly due to high accuracy main spindle .
4) Be able to cut the length and Angle of the profile at one time .
5) It has features of easy operation ,reliable performance,advanced technique and convenient maintenance ,etc.
JINAN WONDEC MACHINERY CO., LTD.
is a famous manufacturer of insulating glass machines, PVC door window machines and aluminum door window machines. WONDEC also sell glass finely processing machines, glass cutting machines, laminated glass (EVA) machines, thermal-break machines, PVC profiles and pipes extrusion machines, recycling machines and others. WONDEC H.Q. is in Jinan, China. WONDEC has sold machines to Canada, Australia, South Africa, Brazil, Jordan, Lebanon, India, Nepal and other more than 70 countries.
Technical Support
WONDEC has one technical team with rich experience which can provide the best machines solutions according to customers' need. WONDEC also manufacture machines as customized order.
After Sale Service
WONDEC has a special team which can install machines and answer for machines problems professionally.
Quality Control
WONDEC manufacture machines as customers' country's voltage and frequency. Each machine is quality checked by three engineers. WONDEC machines are with high quality spare parts.
