Quick Details
Description
- Brand Name:WONDEC
- Model Number:SJV-55

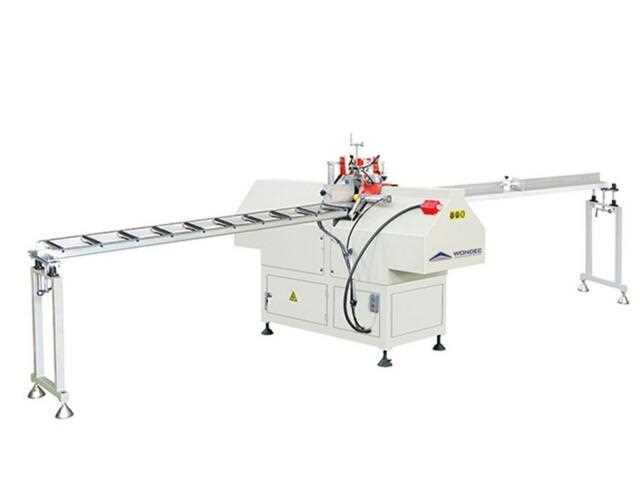

- Product name:PVC Profile Mullion Cutting Saw
- Input Power:2.2Kw
- Power Supply:380V/50Hz
- Air Pressure:0.5~0.8Mpa
- Air Consumption:15L/min
- Motor Rotary Speed:2800r/min
- Cutting Height:≤110mm
- Cutting Width:≤120mm
- Cutting Legth:300~2100mm
- Overall Dimension:7500*1720*1390mm
Main Features of PVC Profile Mullion Cutting Saw
1) Two 90 ° cutting saw blade in space decorate, a clamping finish two v-shaped cut of the head at the same time, high accuracy, high production efficiency
2) Horizontal arrangement, smooth motion, high precision of sawing
3) Special clamping - lifting device, unbroken.
4) Cutting waste, only generated at the saw, the profile utilization is high
|
SPECIFICATIONS FOR PVC PROFILE MULLION CUTTING SAW
|
|
Main performance parameters
|
Input Power
|
Kw
|
2.2
|
|
Power Supply
|
V/Hz
|
380/50
|
|
Air Pressure
|
Mpa
|
0.5~0.8
|
|
Air Consumption
|
L/min
|
15
|
|
Motor Rotary Speed
|
r/min
|
2800
|
|
Cutting Height
|
mm
|
≤110
|
|
Cutting Width
|
mm
|
≤120
|
|
Overall Dimension
|
mm
|
7500*1720*1390
|
JINAN WONDEC MACHINERY CO., LTD.
is a famous manufacturer of insulating glass machines, PVC door window machines and aluminum door window machines. WONDEC also sell glass finely processing machines, glass cutting machines, laminated glass (EVA) machines, thermal-break machines, PVC profiles and pipes extrusion machines, recycling machines and others. WONDEC H.Q. is in Jinan, China. WONDEC has sold machines to Canada, Australia, South Africa, Brazil, Jordan, Lebanon, India, Nepal and other more than 70 countries.
Technical Support
WONDEC has one technical team with rich experience which can provide the best machines solutions according to customers' need. WONDEC also manufacture machines as customized order.
After Sale Service
WONDEC has a special team which can install machines and answer for machines problems professionally.
Quality Control
WONDEC manufacture machines as customers' country's voltage and frequency. Each machine is quality checked by three engineers. WONDEC machines are with high quality spare parts.
