Quick Details
Description
- Condition: New
- Place of Origin: Zhejiang, China (Mainland)
- Brand Name: TITAN/OEM
- Model Number: HLT
- Type: Manual Pallet Truck
- Power Souce: Hydraulic
- Rated Loading Capacity: 1000kg 1500kg
- Max. Lifting Height: 800mm
- Min. Lifting Height: 85mm
- Fork Length: 1140/1150/1100
- Fork Width: 520/ 540/680mm
- Overall Dimensions: 1604X700X600MM
- Certification: CE/ISO9001/TUV
- After-sales Service Provided: Engineers available to service machinery overseas

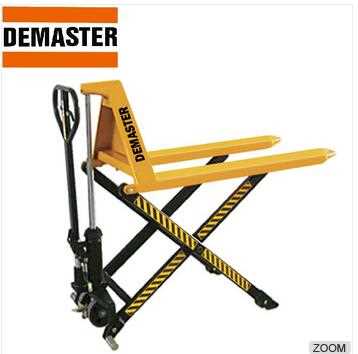

- Product Name: Scissor lift pallet truck
- Handle: without rubber
- Color: yellow
- Wheel: nylon/pu
- Net Weight: about 65kg
- Piston: double/single
- packing size: 214x62x111
- Packing Term: 6pcs/pallet
- Colored skill: Powder coating
- Warranty: 1 year
Titan Scissor lift pallet truck Features
Color : red/ yellow/ blue/ green/ black etc, as per customer request
Capacity:2000kgs 2500kgs/3000kgs /5000kgs
Fork Width: 250mm/550/685mm
Fork Length: 900/1150mm or other size customer need
Packing: 6pcs/pallet, 378pcs/40ft
Advanced Robot welding ensure high strength, good finish, no bubble in the welding
The high efficiency cast-pump jack has a one year's warranty.
Titan Scissor lift pallet truck Specification
|
Model
|
|
HLT540
(Single piston)
|
HLT680(Sngle piston)
|
HLT520( double piston)
|
HLT680( double piston)
|
HLT520( double piston)
|
HLT520( double piston)
|
|
Capcity
|
kg
|
1000
|
1000
|
1500
|
1500
|
1500
|
1500
|
|
Min.Max. lifting height
|
mm
|
85/800
|
85/800
|
85/800
|
85/800
|
85/800
|
85/800
|
|
Fork Width
|
mm
|
540
|
680
|
520
|
680
|
520
|
680
|
|
Fork Length
|
mm
|
1150
|
1150
|
1140
|
1140
|
1100
|
1100
|
|
Packing 4pcs/pallet
|
cm
|
214x62x111
|
214x76x111
|
193x58x72
|
193x74x72
|
193x58x77
|
193x74x77
|
We founded in year 2006, and start to export by ourselves until year 2015, under Demos.
We get rich experience of OEM for scissor lift table, drum loaders, pallet truck and stacker etc. We offers you not only good price, but also quick response, reliable quality, easy maintenance etc.
We got TUV CE certificates, and apply full inspection before shipment, to make sure every failure will not be delivered to our customers. Cooperation with Titan, we make you a easy buying work.
