Quick Details
Description
- Place of Origin: Zhejiang, China (Mainland)
- Brand Name: DEMASTER
- Model Number: HU
- Lift Mechanism: Scissor Lift
- Lift Drive / Actuation: Electric Motor
- Power: 2.2kw
- Rated Loading Capacity: 1000kg 1500kg
- Min. Lifting Height: 205mm
- Max. Lifting Height: 860mm or customerized
- Table Size: 1080*560mm
- Overall Dimensions: 1450*1140mm
- Weight: 240-400kg
- Certification: CE/TUV/SGS/CQC/ISO
- Warranty: 1 Year, 1year whole set
- After-sales Service Provided: Engineers available to service machinery overseas

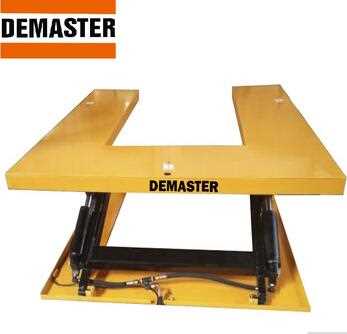

- Product Name: U type lift table
- Load capacity: 1000kg, 1500kg
- u type lift table Color: yellow
- min.lifting height: 85/105mm
- u shape lift table Net Weight: 240-400kg
- Max Lifting Height: 860mm
- u shape lift table Rise time: 20~65s
- Packing Term: u shape scissor table 1pcs/pallet
- u shape scissor table Colored skill:Powder coating
Titan Stationary Electric Scissor Lift Table Features
Color : red/ yellow/ blue/ green/ black etc, as per customer request
Capacity: 1000kgs 1500kgs
Single Scissor
Max. Lifting Height:860mm more higher
Packing: 1pcs/pallet
Advanced Robot welding ensure high strength, good finish, no bubble in the welding
The high efficiency pump jack has a one year's warranty.
U shape lift table specification
|
Model
|
HU1000
|
HU1500
|
|
Rated lifting capacity(kg)
|
1000
|
1500
|
|
U type table size(mm)
|
1450*1140
|
1600*1180
|
|
Size A(mm)
|
280
|
300
|
|
SizeB(mm)
|
1080
|
1150
|
|
SizeC(mm)
|
580
|
580
|
|
Min height/Max height(mm)
|
85/860
|
105/860
|
|
Base size(mm)
|
1335*947
|
1335*947
|
|
Elevating time(s)
|
25-35
|
30-40
|
|
Power parameters
|
380V/50HZ
|
380V/50HZ
|
|
U shape table N.W(kg)
|
280
|
380
|
We founded in year 2006, and start to export by ourselves until year 2015, under Demos.
We get rich experience of OEM for scissor lift table, drum loaders, pallet truck and stacker etc. We offers you not only good price, but also quick response, reliable quality, easy maintenance etc.
We got TUV CE certificates, and apply full inspection before shipment, to make sure every failure will not be delivered to our customers. Cooperation with Titan, we make you a easy buying work.
