Quick Details
Description
- Place of Origin: Zhejiang, China (Mainland)
- Brand Name: TITAN/OEM
- Model Number: HW HD HT
- Lift Mechanism: Scissor Lift
- Lift Drive / Actuation: Electric Motor
- Power: 2.2kw
- Rated Loading Capacity: 1000kg 2000kg 4000kg
- Min. Lifting Height: 205mm
- Max. Lifting Height: 3m
- Table Size: 1300x850~1700x120
- Overall Dimensions: 1300x850~1700x120
- Weight: 200~600KG
- Certification: CE/TUV/SGS/CQC/ISO
- Warranty: 1 Year, 1year whole set
- After-sales Service Provided: Engineers available to service machinery overseas
- Product Name: Electric lift table
- Load capacity: 1000~4000kg
- Color: Customized Color
- min.lifting height: 205~400mm
- Net Weight: 200~600kgs
- Max Lifting Height: 900mm~3000mm
- Rise time: 20~65s
- Packing Term: 1pcs/pallet
- Colored skill: Powder coating

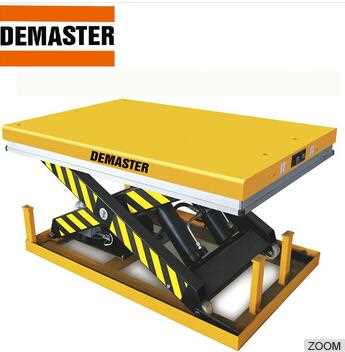

Titan Stationary Electric Scissor Lift Table Features
Color : red/ yellow/ blue/ green/ black etc, as per customer request
Capacity: 1000kgs 2000kgs 4000kgs
Double Scissor and Single Scissor
Max. Lifting Height:1000mm/2000mm/3000mm more higher
Packing: 1pcs/pallet
Advanced Robot welding ensure high strength, good finish, no bubble in the welding
The high efficiency pump jack has a one year's warranty.
Titan Stationary Electric Scissor Lift Table Specification
|
|
SINGLE SCISSOR
|
DOUBLE SCISSORS
|
|
|
|
|
|
Model
|
HW1001
|
HW2001
|
HW4001
|
HD1001
|
HD2001
|
HD4001
|
|
Load capacity/rated load
|
1000
|
2000
|
4000
|
1000
|
2000
|
4000
|
|
Max.lift height
|
900
|
1000
|
1050
|
1780
|
1780
|
2050
|
|
Min.height of table
|
205
|
230
|
240
|
305
|
360
|
400
|
|
Table size
|
1300*820
|
1300*850
|
1700*1200
|
1300X850
|
1300X850
|
1700X1200
|
|
Service weight
|
160
|
235
|
375
|
210
|
295
|
520
|
|
Base size
|
1240*640
|
1220*785
|
1600*900
|
1250X785
|
1250X785
|
1600X900
|
|
Rise time
|
20-25
|
20-25
|
30-40
|
35~45
|
35~45
|
55~65
|
|
Electrical source parameter
|
380V/50HZ
|
380V/50HZ
|
380V/50HZ
|
380V/50HZ
|
380V/50HZ
|
380V/50HZ
|
We founded in year 2006, and start to export by ourselves until year 2015, under Demos.
We get rich experience of OEM for scissor lift table, drum loaders, pallet truck and stacker etc. We offers you not only good price, but also quick response, reliable quality, easy maintenance etc.
We got TUV CE certificates, and apply full inspection before shipment, to make sure every failure will not be delivered to our customers. Cooperation with Titan, we make you a easy buying work.
