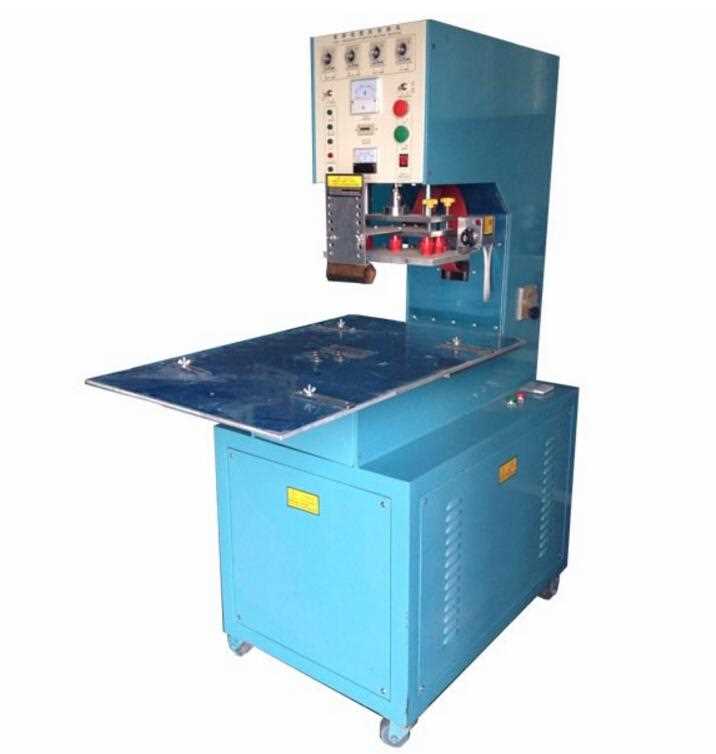

Small High Frequency PVC Plastic Sheet Welding Machine for Sale
Suitable for electric hot-water bag, plastic blister packaging, inflatable toys, raincoats and umbrellas, purse handbags, stationery, stickers, leather embossing, shoe brand welding, and car seat cushion, cloth embossing, normal PVC and PVC percentage more than 30% welding packaging.
Quick Details
Description
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: HUAXIANG
- Model Number: HX-5K
- Voltage: 220V or 380V, 50HZ
- Power: 5KW, 5000w
- Frequency: 27.12MHZ
- Welding Area: Adjustable
- Dimensions: 1000*1360*1740mm
- Weight: 400KG
- Usage: Plastic Welding/packing,blister sealing/packing,clamsheel sealing
- After-sales Service Provided: Engineers available to service machinery overseas
- Welding Area:: 700*800 mm
- Certificate: CE Approved
- Warranty: One Year
- Application: Commodity, Medical, Machinery & Hardware
- For Making Samples: Make Samples
- Name: High Frequency Welding Machine
- Automatic Grade: Automatic
- Scale of tempreture: 0-200℃
- Welding Time: 0-10S Adjustable
Specifications
1.Using vacuum tubes, output power is stable and reliable
2.Sensitive spark over-current protection circuit
3.CE certificate
Application:
Suitable for electric hot-water bag, plastic blister packaging, inflatable toys, raincoats and umbrellas, purse handbags, stationery, stickers, leather embossing, shoe brand welding, and car seat cushion, cloth embossing, normal PVC and PVC percentage more than 30% welding packaging.
Features:
1 Using vacuum tubes, the output power is stable and reliable.
2. Sensitive spark over-current protection circuit. Can effectively cut off due to damage to host large current output, suppress sparks.
3 Has a frequency stabilizer and high frequency shielding devices, the high-frequency interference to a minimum.
4 Infinitely adjustable head trip, special mechanical pedal mechanism maximum pressure up to 400kgs.
5 According processing needs, choose pneumatic pressure way to reduce the intensity of work, enhance the quality of voltage products.
6 Stepless temperature heating system, make work more efficient.
7 The four type horizontal adjustment, easy adjustable die to save time.
8.Automatic over-current protection system, increase the service life of vacuum tubes, protect the mould.
9.4kw40.68mhz, 5-12kw27.12mhzinternational standard industrial band.
Technical parameters:
|
Items
|
Parameter
|
|
Model
|
HX-5K
|
|
Power supply
|
380V/50HZ
|
|
Output Power
|
5000W
|
|
Input Power
|
12KVA
|
|
Oscillation frequency
|
27.12MHZ
|
|
Working speed
|
400-600 pcs/H
|
|
Rectifier
|
Silicon Diode
|
|
Vibration tub
|
7T69RB
|
|
Gap of electrodes
|
250mm
|
|
Max Welding area
|
460*610 mm
|
|
Machine size
|
1000*670*1650 mm
|
Shenzhen Huaxiang is a blister packaging factory that has specialized in producting and marketing for more than 10 years.
Our company has blister packaging materials, blister packaging moulding, blister packaging samples, blister packaging machine and comprehensive blister packaging products.
We can provide customers with complete blister packaging production investment program.
We have all-day , online, before-sale, sale tracking and after-sale service staff, off-line global-scale, substitutional after-sale service points.
