Quick Details
Description
- Type: Wrapping Machine
- Condition: New
- Application: Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles, gifts
- Packaging Type: Film, Barrel
- Packaging Material: Plastic
- Automatic Grade: Semi-Automatic
- Driven Type: Pneumatic
- Voltage: 380V
- Power: 12kw
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: HUAXIANG
- Model Number: HX-4825
- Dimension(L*W*H): 1200*480*250mm
- Weight: 150kg
- Certification: CE
- After-sales Service Provided: Engineers available to service machinery overseas

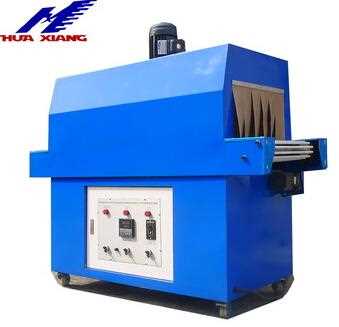

- Product name: Shrink Wrapping Machine
- Usage: Shrink film packing for kinds of products
- material: stainless steel
- Packing Material: PE film
- packing speed: 13-25pcs/min
- Area of PressBoard: 305mm*457mm
- Product feeding motor: SESAME(Taiwan)
- Machine type: wrapping machine
- Factory Oem: yes
Shrink packaging is currently one of more advanced packaging methods in the international market. It uses the shrinkable film bag on products or outside the package, and then heating that it shrinks packaging material and wraps product or package. It fully displays items, in order to add aesthetic feeling and a sense of value. Meantime, the heater shrink packed products can be seal well, prevented from getting damp, antipollution, and the protection of goods from externa
l shocks, has some of the buffer; In addition, can reduce the possibility of stolen and demolished; Film contraction will produce a certain tension when it shrinks, so it should wrap a set of packaging goods, particularly applicable to a collection of multiple items and pallet packaging. So this equipment is widely used in all sorts of small packing of the products. Suitable for color box toys, electronic appliances, ceramic daily necessities such as PVC, PP, PE shrinkable packaging, packed products are beautiful and difficult to damage.
|
HX-4825 Parameter
|
|
Shrink film
|
PVC、PP、PE，POF
|
|
Conveyor speed
|
0-10m/Min
|
|
Furnace size
|
L1200*W480*H250mm
|
|
Maximum load
|
15KG
|
|
Shrinkage temperature
|
0-300℃
|
|
Voltage
|
220V/380V 50-60Hz
|
|
Power
|
12KW
|
|
Machine size
|
L1600*W670*H1600mm
|
|
Machine weight
|
250KG
|
| |
|
Features:
1. Electronic components CVT transmission, stable and reliable, long life and low noise.
2. The heating mode of quartz farness infrared tube can continuously produce infrared radiation with strong wind circulation, the heating temperature becomes more uniform and save power.
3. Transmission part adopts high power dc motor with infinite speed adjustment, and high carrying rate. It can work continuously for a long time with stable and reliable running.
4. Special mechanical structure design with more beautiful and luxurious appearance, easy and convenient maintenance.
Process
A. Connect and open power switch, start the conveyor belt, machine preheating about 5 minutes, open the fan switch (note: fan switch must be opened when the machine works), according to the shrinkage film thickness, adjust upper and lower room temperature, adjusting knob and conveying speed, shrink packaging can start after meets usable requirements.
B. In practice, can reduce transmission speed or increase heating temperature if fold is overmuch after shrank; In contrast, can reduce temperature or speed up the delivery if shrink over.
C. After operation, turn off heating switch, conveyor motor and hot air motor keep operating 5-10 minutes, then cut off the power.
Shrinkable film temperature and time value:
|
Material
|
Thickness(mm)
|
Heating Time(s)
|
Temperature of Shrinkage Chamber（℃）
|
|
PVC
|
0.02-0.06
|
5-10
|
110-130
|
|
PP
|
0.02-0.04
|
6-12
|
130-170
|
|
PE
|
0.06-0.20
|
10-60
|
150-180
|
|
POF
|
0.03-0.10
|
8-16
|
130-170
|
Shenzhen Huaxiang is a blister packaging factory that has specialized in producting and marketing for more than 10 years.
Our company has blister packaging materials, blister packaging moulding, blister packaging samples, blister packaging machine and comprehensive blister packaging products.
We can provide customers with complete blister packaging production investment program.
We have all-day , online, before-sale, sale tracking and after-sale service staff, off-line global-scale, substitutional after-sale service points.
