Quick Details
Description
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: HUAXIANG
- Model Number: HX-8K-8T
- Voltage: 220V or 380V, 50HZ
- Power: 8KW High Frequency Press, 8000w
- Frequency: 27.12MHZ
- Welding Area: 400mm*600mm
- Dimensions: 2000mm*1400mm*2400mm
- Weight: 1200KGS
- Usage: Plastic Welding/packing,blister sealing/packing,clamsheel sealing
- After-sales Service Provided: Engineers available to service machinery overseas

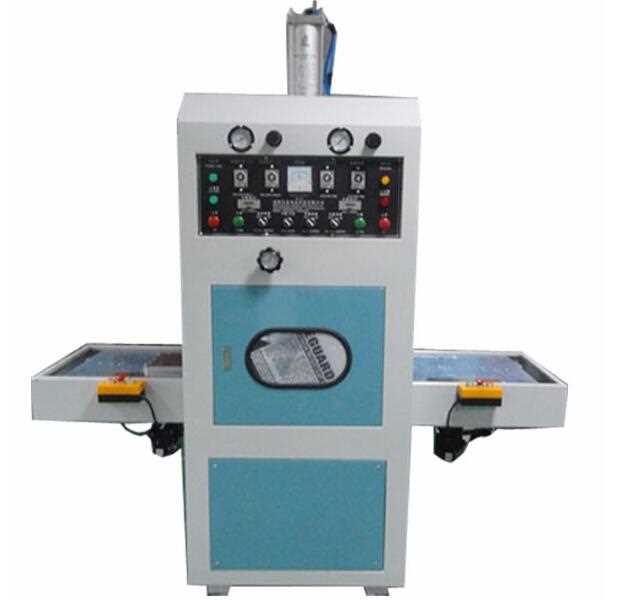

- Name: Apet Welding Machine
- Application: Commodity, Medical, Machinery & Hardware
- Driven Type: Pneumatic
- Warranty: One Year
- Material: PVC Tarpaulin
- For Making Samples: Make Samples
- Automatic Grade: Automatic
- Scale of tempreture: 0-200℃
- Welding Time: 0-10S Adjustable
Main application: Plastic packaging (includingheat sealing and trimming for upper and lower blister, heat sealing and trimming for blister and cardboard), automobile ornaments, sunshade, trademarks, garments, shoe and cap embossing, leather embossing; gas mattress, boat, life jacket, toy; stationery , raincoat, plastic cover; kinds of medical infusion bag, blood bag, portable soft bag; it can be used for pressing kinds of concave-convex figures and characters. Equipped with some simple devices, it also can be used for bronzing.
it is available for PVC, PET, APET, PU, TPU, PP, Leather and other Plastics.
Application range
1.Medical: Including Blood bags, Colostomy bags, DVT bags, Solution bags, EVA bags, Medical Mattresses, produced on HF welding machinesThe materials can be PVC, Medical Grade PVC and Non PVC.
2.Tarpaulin Awnings and Banners: Including HF travelling head, fixed head and gantry, hot air in-line and fixed head, gluing, sewing and ultrasonic system. Plotters conveyor or fixed table, water jet cutting systems and associated equipment.
3.Automotive: Including Car Carpets, Sun Visors, Load Floors, Seats
4.Packaging: Including All kinds of Blister package ,( Paper +Paper, Blister Clamshell +Plastic Clamshell. Blister Clamshell +Paper Card.
5.Stationery: including Pockets, Binders, Tax Discs produced on high frequency welding, rotary, inline and shuttle machinery.
Technical parameters:
|
Model
|
HX-8K-8T
|
|
Power supply
|
AC380V
|
|
Output Power
|
8000W
|
|
Oscillation frequency
|
27.12MHZ
|
|
Working speed
|
400-600 pcs/H
|
|
Rectifier
|
Silicon Diode
|
|
Vibration tub
|
7T85RB
|
|
Gap of electrodes
|
110mm
|
|
Max. Welding area
|
400*600 mm
|
|
Machine size
|
2000*1400*2400 mm
|
|
Weight
|
1200KG
|
Shenzhen Huaxiang is a blister packaging factory that has specialized in producting and marketing for more than 10 years.
Our company has blister packaging materials, blister packaging moulding, blister packaging samples, blister packaging machine and comprehensive blister packaging products.
We can provide customers with complete blister packaging production investment program.
We have all-day , online, before-sale, sale tracking and after-sale service staff, off-line global-scale, substitutional after-sale service points.
