Quick Details
Description
- Type: Multi-Function Packaging Machine
- Condition: New
- Function: Sealing
- Application: Beverage, Food, Machinery & Hardware, Medical
- Packaging Type: Bags, Pouch, Stand-up Pouch
- Packaging Material: Plastic
- Automatic Grade: Automatic
- Driven Type: Electric
- Voltage: 380V, 50Hz
- Power: 4.545KW
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: BAOPACK

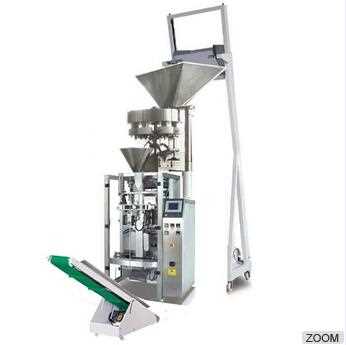

- Model Number: VT52A with volumetric cup
- Dimension(L*W*H): (L)2050*(W)1300*(H)1910mm (only for main machine)
- Certification: CE/ISO9001:2000
- After-sales Service Provided: Engineers available to service machinery overseas
- Packing speed: 45bags/min
- Accuracy: ≤±1.5%
- Max film width: 520mm
- Film thickness: 0.04-0.09mm
- Bag type: Pillow bag, Punching bag
- Air consumption: 0.8Mpa, 0.3cbm/min
- Air compressor: Not less than 1 CBM
- Total height: 3.783m
Introduction
This packing system is suitable for packing small granular materials, such as beans, salt, sugar, etc.
Easy to operate, very low maintenance, the most economic packing series.
The whole machine technical specification
|
Item
|
Content
|
|
Capacity
|
45 bags/min,it is according to quality of film and packing products
|
|
Accuracy
|
≤±1.5%
|
|
Bag size
|
Front width:70-200mm
|
|
|
Side width: 30-100mm
|
|
|
Width of side seal:5-10mm
|
|
|
Length: 100-350mm
|
|
Film width
|
520mm
|
|
Bag type
|
Block bottom type
|
|
Film thickness
|
0.04-0.09mm
|
|
Package material
|
thermal composite material., like BOPP/CPP, PET/AL/PE etc
|
|
Air consumption
|
0.8Mpa 0.3m3/min
|
|
Total powder
|
Bucket lifting conveyor (0.75KW)+volumetric cup (0.25KW)+main machine(3.5KW)+finished products conveyor(0.045KW)= 4.545KW
|
|
Voltage
|
Four wire three phase 380V, 50Hz
|
|
Air compressor
|
Not less than 1 CMB
|
|
Total height
|
3.783m
|
A. High automatic, easy operation, save costs
B.AOPACK over the past 10 years continuously improve packaging solutions, packaging experience
C. 1 worker can control the whole sets, low failure rate
D. The whole system is linkage control, automatic feeding, stop working without materials
Features
* Attractive bag type to satisfy your high demand.
* It completes bagging, sealing, date printing, punching, counting automatically;
* Film drawing down system controlled by servo motor. Film rectifying rectifying deviation automatically;
* Famous brand PLC. Pneumatic system for vertical and horizontal sealing;
* Easy to operate, low maintenance, compatible with different internal or external measuring device.
* The way of bag making: the machine can make pillow-type bag and standing bag according to
customer’s requirements.
Technical parameter
|
Items
|
Content
|
|
Capacity
|
45 bag/min
|
|
Bag size
|
Front width: 70-200mm
|
|
Side width: 30- 100mm
|
|
Width of side seal: 5-10mm
|
|
Length: 100-350mm
|
|
Bag type
|
Pillow-bag, standing-bag, block bottom bag
|
|
Filling range
|
0.04-0.09mm
|
|
Max film width
|
Max 520mm
|
|
Film thickness
|
0.04-0.09mm
|
|
Air consumption
|
0.8Mps 0.3m3/min
|
|
Main power/voltage
|
3.5KW/ 220V 50Hz
|
|
Dimension
|
2050*1300*1910mm
|
|
Weight
|
750kg
|
BAOPACK Packaging Machinery Co., Ltd. is a professional manufacturer of food packaging machines. Located in Foshan city south China's Guangdong province.We are major in the packing machine for more than 11 years.
In China, we are the leading company in this area.Our machine exported over 40 countries and welcomed by the customers since good quality but inexpensive.The best quality of the machine will make user increase productivity and reduce maintenance costs,achieve higer economic efficiency.
We got CE & ISO9001:2000 certification.Also,we have perfect after-sale service,when the packing machine has problems just send us an E-mail,our engineer will reply you how to solve the problem or go to your factory.Know more about us please log on:cbaopack.en.alibaba****** or ******cbaopack******.
We have the comprehensive abilities in many fields such as design and development of whole projects, production and manufacture, installation and testing, technical training and surpport. Adhering to the spirit of "quality, efficiency, credibility and practicality", we guarantee the high quality of our products.
With the market spreading over Europe, America and Southeast Asia, we sincerely hope to cooperate with customers from all over the world. Please contact us for more details. We ensure to provide qualified products with the best service.
