Quick Details
Description
- Type: Multi-Function Packaging Machine
- Condition: New
- Function: Filling, Sealing, Wrapping
- Application: Beverage, Food, Machinery & Hardware, Medical
- Packaging Type: Bags, Pouch, Stand-up Pouch
- Packaging Material: Plastic
- Automatic Grade: Automatic
- Driven Type: Electric
- Voltage: 380V, 50Hz
- Power: 4KW
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: BAOPACK
- Model Number: VP93 with two heads combination weigher
- Dimension(L*W*H): (L)2000*(W)1400*(H)2000mm (only for main machine)
- Certification: CE/ISO9001:2000
- After-sales Service Provided: Engineers available to service machinery overseas, Engineers available to service machinery overseas

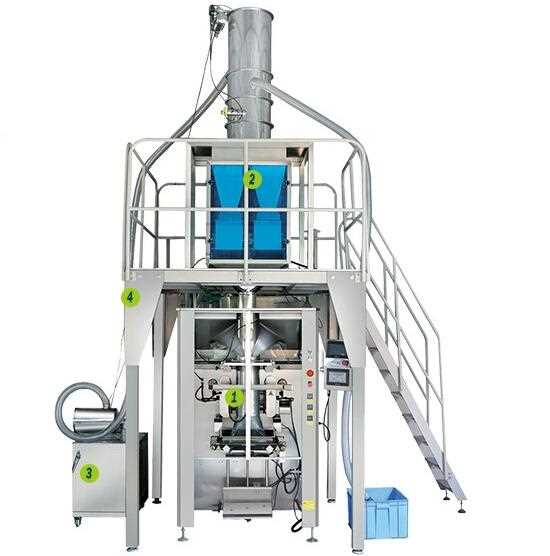

- Name: CB-VP93 pillow bag packing machine With Two Heads Linear Scale
- Packing speed: 45bags/min
- Accuracy: ≤±1.5%
- Max film width: 520mm
- Film thickness: 0.04-0.09mm
- Bag type: Pillow bag, Punching bag
- Air consumption: 0.8Mpa, 0.3cbm/min
- Air compressor: Not less than 1 CBM
- Type of bag making: stand-up bag
1:The electrical box is hided after the film going bracket. In this case, the machine looks more thin and simple than before. But on the other side, it is becoming longer than the normal.
The electrical box is waterproof.
2:The film going shaft is full-covered now. And the design of it is different than before. At the beginning and the end of the shaft, they are all with brush to clean the film.
3:Film pulling structure is adopted independent controlling system, each side with one servo. Compares to before, we use single servo to control both sides of film pulling.
4:Horizontal sealing structure is more simple than before.
5:All the moving parts, such as the horizontal sealing structure. The slide bearing on it are all used the plastic bearing from Igus to make sure the using life of it longer and more clean, less noise.
6:The design of gusseted device is more synchronous than before.
|
Product name
|
High quality hot sale high-speed pillow packing machine
|
|
Item
|
CB-VP93
|
|
Range of measuring
|
≤ 29 L
|
|
Weight
|
740 kg
|
|
Range of film roll
|
560-930mm
|
|
Film thickenss
|
0.04-0.09mm
|
|
Air consumption
|
0.8 Mpa 0.7 cmb/min
|
|
Power
|
4 KW/220V 50-60Hz
|
|
Dimension
|
L2000*W1400*H2000mm
|
|
Bag size
|
(L)380-650mm (W)270-450mm
|
|
Bag type
|
Pillow-type bag ( optional :gusseted bag )
|
|
Packing speed
|
Max 50 bags/min ( for empty bag making)
In the project, the working speed is around 15 bpm.
|
BAOPACK Packaging Machinery Co., Ltd. is a professional manufacturer of food packaging machines. Located in Foshan city south China's Guangdong province.We are major in the packing machine for more than 11 years.
In China, we are the leading company in this area.Our machine exported over 40 countries and welcomed by the customers since good quality but inexpensive.The best quality of the machine will make user increase productivity and reduce maintenance costs,achieve higer economic efficiency.
We got CE & ISO9001:2000 certification.Also,we have perfect after-sale service,when the packing machine has problems just send us an E-mail,our engineer will reply you how to solve the problem or go to your factory.Know more about us please log on:cbaopack.en.alibaba****** or ******cbaopack******.
We have the comprehensive abilities in many fields such as design and development of whole projects, production and manufacture, installation and testing, technical training and surpport. Adhering to the spirit of "quality, efficiency, credibility and practicality", we guarantee the high quality of our products.
With the market spreading over Europe, America and Southeast Asia, we sincerely hope to cooperate with customers from all over the world. Please contact us for more details. We ensure to provide qualified products with the best service.
