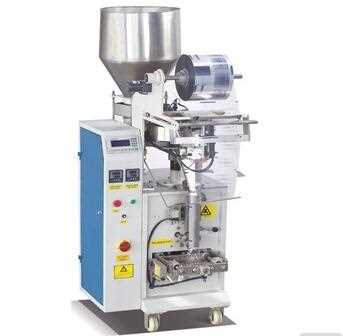

Chocolate Bean Vertical Packing Machine E32II With Volumetric Cup
This packing system is suitable for packing coffee bean, sugar, salt, spice, potato chip, puffed food, jelly, pet food, snacks, gummy, etc.
Quick Details
Description
- Type: Multi-Function Packaging Machine
- Condition: New
- Function: Sealing
- Application: Beverage, Food, Machinery & Hardware, Medical
- Packaging Type: Bags, Pouch, Stand-up Pouch
- Packaging Material: Plastic
- Automatic Grade: Automatic
- Driven Type: Pneumatic
- Voltage: 380V, 50Hz
- Power: 4.75KW
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: BAOPACK
- Model Number: E32II with volumetric cup
- Dimension(L*W*H): (L)1175*(W)750*(H)1800mm (only for main machine)
- Certification: CE/ISO9001
- After-sales Service Provided: Engineers available to service machinery overseas
- Packing speed: ≤70bags/min
- Accuracy: ≤±1.5%
- Bag size: (L)50-200mm, (W)50-150mm
- Max film width: 320mm
- Film thickness: 0.04-0.09mm
- Bag type: Pillow bag, Punching bag
- Air consumption: 0.8Mpa, 0.25cbm/min
- Total height: 1.95m
- Filling range: 50-150ml
- Air compressor: not less than 1 CBM
Introduction
This packing system is suitable for packing coffee bean, sugar, salt, spice, potato chip, puffed food, jelly, pet food, snacks, gummy, etc.
The whole machine technical specification
|
Item
|
Content
|
|
Capacity
|
50 bag/min,it is according to quality of wrapping and supplies
|
|
Accuracy
|
≤±1.5%
|
|
Bag size
|
(W)50-150mm (L)50-200mm
|
|
Film width
|
100-320mm
|
|
Bag type
|
Pack with film, upper seal, lower seal and back seal by automatic bag making machine.
|
|
Filling range
|
50-500ml
|
|
Film thickness
|
0.04-0.09mm
|
|
Package material
|
thermal composite material., likeBOPP/CPP, PET/AL/PE etc
|
|
Air consumption
|
0.8Mpa 0.25m3/min
|
|
Total powder
|
4.75 KW 220V
|
|
Voltage
|
Four wire three phase 380V 50HZ
|
|
Air compressor
|
Not less than 1 CBM
|
|
Total height
|
1.95 m
|
Features
PLC control system, easy to operate and maintain.
Light touch bottom control, easy to control.
It can complete bagging, filling, date printing, charging ( exhausting) automatically.
Suitable to package granule materials, such as puffed food, shrimp, peanuts, rice, chocolate, beans, etc.
Technical parameter
|
Items
|
Content
|
|
Capacity
|
50bag/min
|
|
Bag size
|
(L)50-200 (W) 50-150mm
|
|
Bag type
|
Pillow-type bag, standing bag, punch
|
|
Range of measuring
|
50-500ML
|
|
Max packaging film width
|
320mm
|
|
Thickness of film
|
0.04-0.09mm
|
|
Air consumption
|
0.8Mpa 0.25cmb/min
|
|
Main power/voltage
|
3 KW/220V 50Hz
|
|
Dimension
|
L1175*W750*H1800mm
|
|
The weight of switchboard
|
250KG
|
