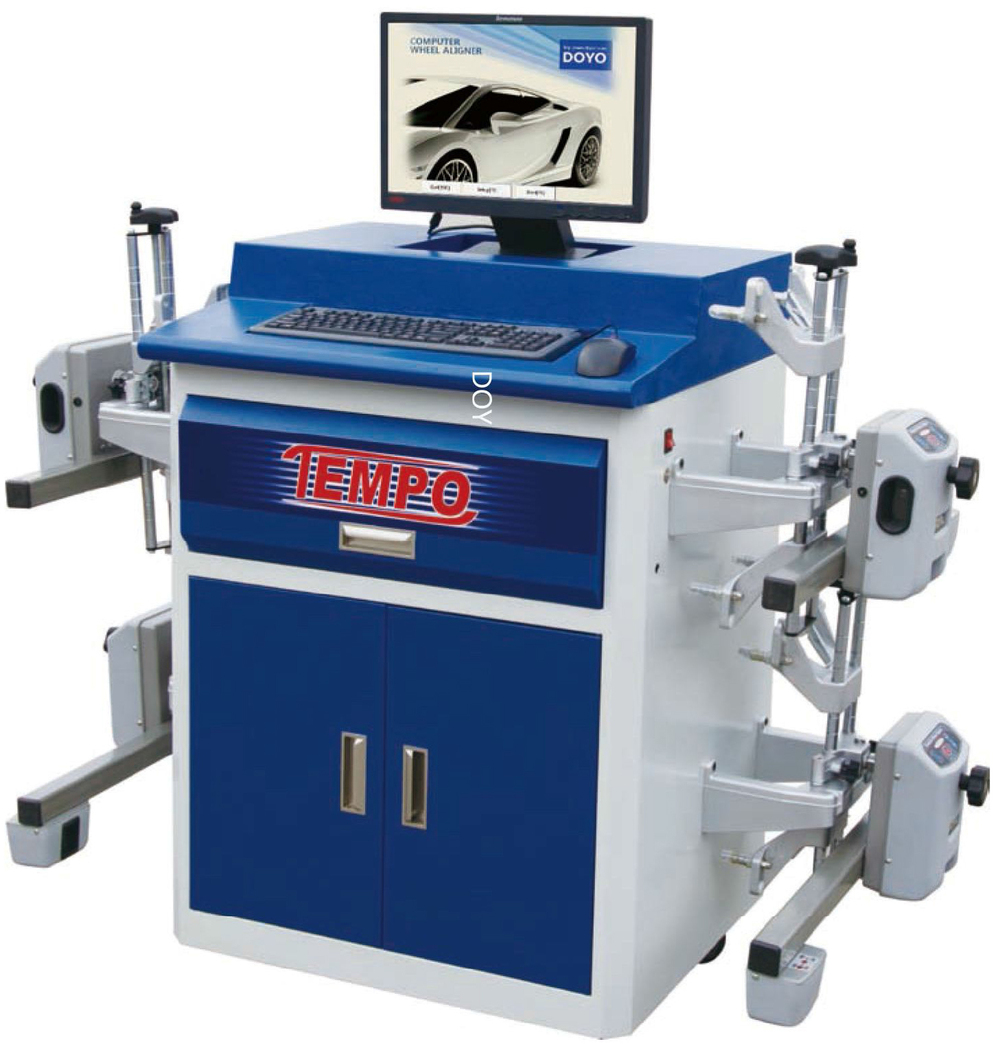

laser alignment equipment for trucks
Main Feature
-Windows XP, Win 7, Win 8, Linux operating system with customer management and data memory.
-6-8 meters long wheel base measuring, suitalbe for passenger car, pickup, truck and bus.
-WiFi wireless communication make the signal transmission more accurate, stabale and reliabale.

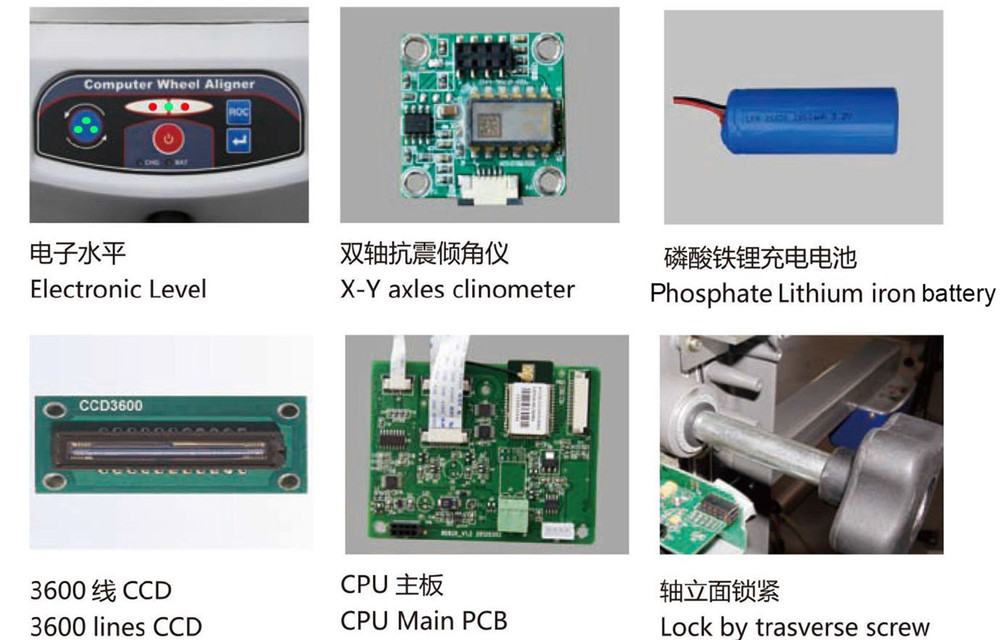

-8 tracks CCD measuring with electronic level.
-3 points run-out compensation measurement.
-Over 10000 vehicle data are saved in PC and new data update can be easily downloaded at Doyo's website.
-Wheel base, track width and axle offset measurement.
-Steering wheel angle measurement and difference value measurement between left wheel and right wheel.
-Self diagnosis for system breakdown and error message.
-Caster lock and lifting lock .
-Self-service multi-language display system.
-3000mA Lithium rechargeable battery and intellegent battery charger make system continuously work more than 30 hours.
-Automatic power off about 5 min after working.
Technical Data
|
Item
|
Range
|
Accuracy
|
|
Toe
|
±10°
|
±2′
|
|
Total Toe
|
±20°
|
±4′
|
|
Camber
|
±12°
|
±2′
|
|
Caster
|
±20°
|
±4′
|
|
SAI
|
±20°
|
±4′
|
|
Thrust angle
|
±8°
|
±2′
|
|
Turning angle
|
±24°
|
±4′
|
|
Range of clamp
|
10″﹣20″or 12″﹣25″
|
|
Clamp range: 10"-22"
Power supply: 220V/110, 50/60Hz
Monitor: 20" LED
Input power: 600W
Console Dimension: 660X650X1150
![]()
![]()
![]()
![]()
![]()
![]()
![]()
Our Company
Our company as a member of China Automotive Maintenance Equipment Association, Dalian Doyo Autotools Co., Ltd was set up in 1997,
located at a beautiful seaport Dalian, covering 8000sq.m of land and 6000sq.m of workshop and warehouse.
Doyo engages production, development and design, importing and exporting of garage equipment, car decorating and repairing service, warehousing and steel construction engineering.
Doyo mainly produce computer wheel aligner, multi-functions spot welder for car body repairing in Dalian manufacturer; jointly produce car lifts, tire changer, wheel balancer and other garage equipment in Yinkou manufacturer.
Doyo brand and TEMPO brand garage equipment has been earning praise by thousands of dealers and endusers in more than 20 countries due to its advanced technology, perfect performance and reliable quality.
![]()

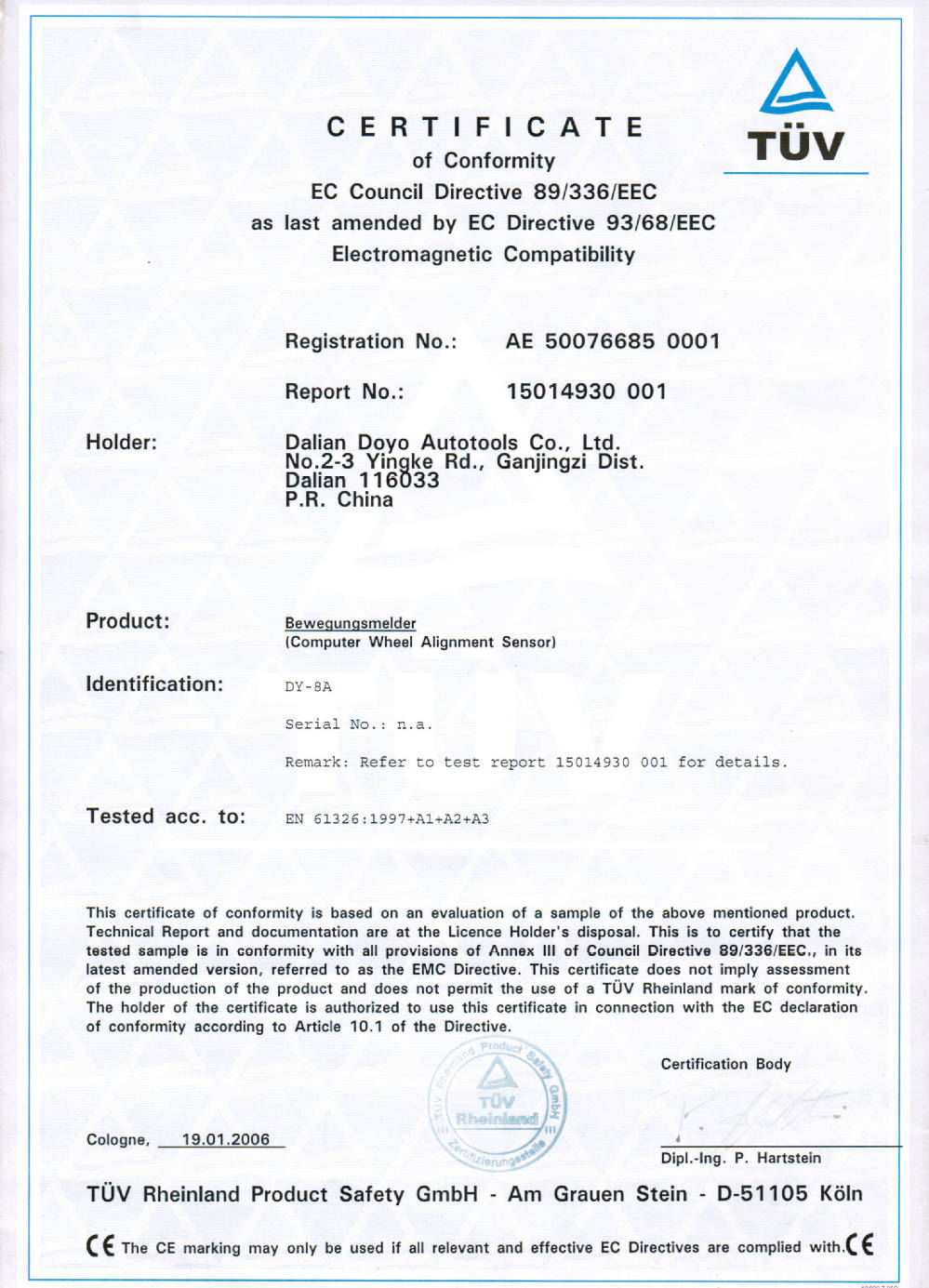

Certificate
![]()
