Main feature

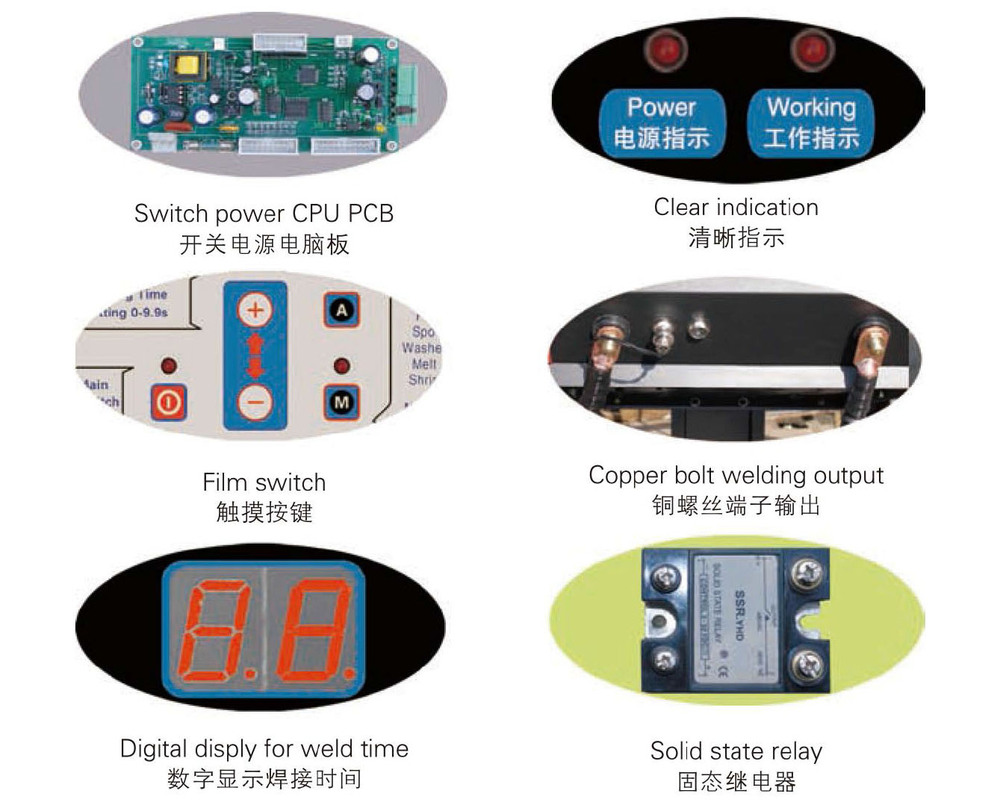

1.Latest electronic components and Micro-processor control with digital display.
2.Solid state relay replaces AC contactor, getting rid of the after services of contact problems.
3.90V-270V wide voltage switch power for control system avoid the problems of control transformer.
4.Touch film switch replace key switch and knob sunitch,making machine more reliable.
5.Automatic control welding time adjustable at 0.1s-9.9s.
6.Bolt output connector of spot weld suitable for 2 or 3 welding guns being connected at same time.

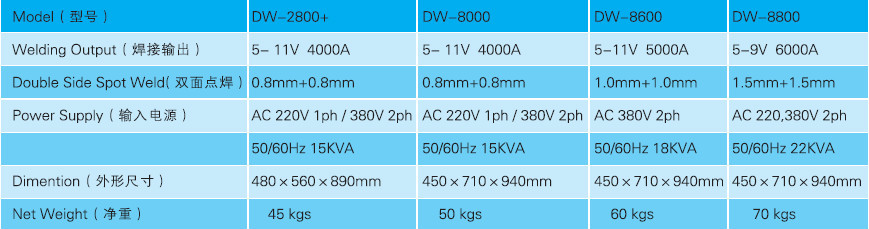

Tecnical data
![]()
![]()
![]()
![]()
![]()

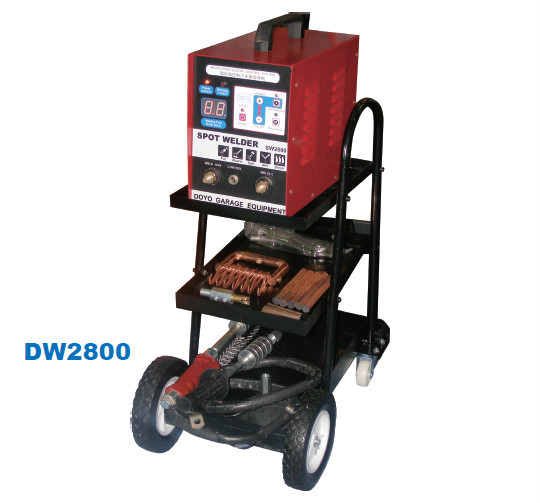

Multi-function welder for car body repair
Main feature
1.Break traditional design, specially suitable for garage workshop.
2.Integrated spot welder, arc welder, battery charger, vehicle booster and melt welder in one welder.

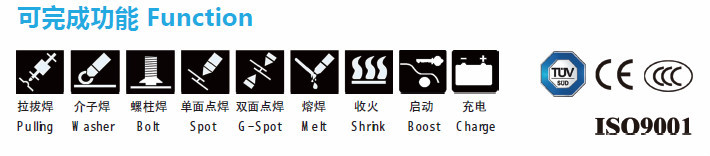

3.Realize spot weld, washer weld, pulling weld, shrinking, electrodeweld,melting weld for copper wires and steel
wires, battery charging and vehicle starting.
4.Adjustable welding current of arc welder specially suitable for thin steel plate.
5.Latest electronic components and micro-processor control.system
6.90V-270V wide voltage switch control power replace control transformer.
7.Solid state relay replaces AC contactor, making machine more reliable and durable.
8.Automatic control welding time adjustable at 0.1s-9.9s and charging time adjustable at 1-99 hours.
9.Output connector of spot weld suitable for 2 or 3 welding guns connection at same time.
10.Both 1ph 220V power and 2phs 380V power supply can be used by user`s selection.
Tecnical data
|
Model
|
DW-5800
|
DW-6800
|
DW-7800
|
|
Output of spot weld
|
2-10V 400-4000A
|
2-10V 400-5000A
|
2-10V 400-6000A
|
|
Double sides spot weld
|
0.8mm+0.8mm
|
1.0mm+1.0mm
|
1.2mm+1.2mm
|
|
Output of electric weld
|
40-60V, 60-160A
|
40-65V, 90-180A
|
40-65V, 100-200A
|
|
Welding rod Dia.
|
2.0-3.2mm
|
2.0-3.2mm
|
2.0-4.0mm
|
|
Arc weld duty
|
20%
|
20%
|
20%
|
|
Spot weld duty
|
5%
|
5%
|
5%
|
|
Max. starting Amp
|
600A
|
700A
|
800A
|
|
Max. charging Amp
|
680A
|
80A
|
100A
|
|
Charging Voltage
|
12V, 24V
|
12V, 24V
|
12V, 24V
|
|
Power supply
|
AC 220V 1ph, 380V 2ph 50/60Hz
|
AC 220V 1ph, 380V 2ph 50/60Hz
|
AC 220V 2ph, 380V 2ph 50/60Hz
|
|
Input Power
|
15KVA
|
18KVA
|
20KVA
|
|
Dimension
|
450×620×940mm
|
450×620×940mm
|
450×620×940mm
|
|
Net weight
|
60kgs
|
66kgs
|
72kgs
|
![]()
![]()
![]()
