Quick Details
Description
- Condition: New
- CNC or Not: Normal
- Power Source: Pneumatic
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: JULY

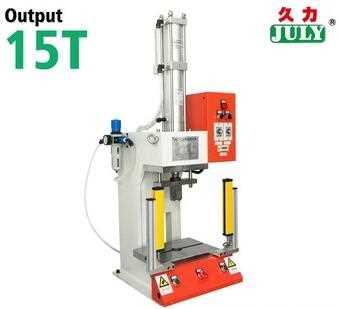

- Model Number: JLYC-15T
- Voltage: 220V
- Power(W): AC220V 50HZ
- Weight: 320KG
- Dimension(L*W*H): 535*602*1490 mm
- Certification: CE
- Warranty: one year
- After-sales Service Provided: Overseas service center available
- Pressure capacity: 15 tons
- Max Height: 245mm
- Cylinder: Diameter 125mm
- Driving Pressure: 0.4-0.7MPA
- Output Pressure: 10240KGF-17900KGF
- Start Button: Two Hand Safety Push Buttons
- Safety Sensor: Customer Optional
- Strcture Type: C Frame
- Processing material: Metal Sheet, Carbon Steel, Stainless Stee
- Custom-tailor: Accept
|
Model
|
3T
|
5T
|
10T
|
15T
|
20T
|
30T
|
40T
|
50T
|
|
Max height
|
245
|
245
|
245
|
245
|
240
|
300
|
300
|
300
|
|
Cylinder specification
|
Ø63mm
|
Ø80mm
|
Ø100mm
|
Ø125mm
|
Ø125mm
|
Ø160mm
|
Ø160mm
|
Ø180mm
|
|
Power
|
AC220V
50Hz
|
AC220V
50Hz
|
AC220V
50Hz
|
AC220V
50Hz
|
AC 220V
50HZ
|
AC 220V
50HZ
|
AC 220V
50HZ
|
AC 220V
50HZ
|
|
Driving pressure
|
0.4-0.7
MPa
|
0.4-0.7
MPa
|
0.4-0.7
MPa
|
0.4-0.7
MPa
|
0.4 - 0.7
mpa
|
0.4 - 0.7
mpa
|
0.4 - 0.7
mpa
|
0.4 - 0.7
mpa
|
|
Weight
|
180kg
|
200kg
|
280kg
|
320kg
|
460 kg
|
1020 kg
|
1360 kg
|
1680 kg
|
|
Driven pressure
|
Theoretical output
|
|
0.4MPa
|
2000Kgf
|
4000Kgf
|
6240Kgf
|
10240Kgf
|
13900 kgf
|
20100 kgf
|
26000 kgf
|
39600 kgf
|
|
0.5MPa
|
2500Kgf
|
5000Kgf
|
7800Kgf
|
12800Kgf
|
17500 kgf
|
25000 kgf
|
32600 kgf
|
49600 kgf
|
|
0.6MPa
|
3000Kgf
|
6000Kgf
|
96360Kgf
|
15350Kgf
|
20900 kgf
|
30000 kgf
|
39000 kgf
|
59500 kgf
|
|
0.7MPa
|
3500Kgf
|
7000Kgf
|
10920Kgf
|
17900Kgf
|
24500 kgf
|
35000 kgf
|
45700 kgf
|
69400 kgf
|
Characteristics
1.It is pneumatically driven,export thrust,simple to operate.
2.No hydraulic system noise, can save electricity consumption and thus reduce production costs.
3.Adjustable cylinder stroke and customized for special request.
4.Easy to adjust the output, the required pressure can be reached by simply regulating the air pressure.
5.Safety and humanity design that ensure operation comfort and long lifespan .
6.Allows adding heating modules and temperature controller, as well as forcing transducer additionally.
7.Available working platform: 500*560*610mm (L*W*H).
JulyR Industrial Limited, its predecessor called Changhua Machinery Factory, was founded in Taiwan in 1985, then moved to Dongguan in 2008. Now JulyR is a professional manufacturer of various hydro-pneumatic products, which has two factories and six branches in China: July Hydro-pneumatic Equipment Co., Ltd mainly produces machines and cylinders in Dongguan; Eagl Science and Technology Co., Ltd makes pneumatic accessories in Jiangxi. Our products involve Press machines, Die-casting machines, Hydro-pneumatic cylinders, Hydraulic cylinders, Air-driven booster pumps, Pressure testing rig, FRL units, Pipe fittings and Plastic hose etc..
Quality is our culture. Integrating R&D, production and marketing, JulyR boasts automatic production lines, advanced production technologies, complete testing equipment and quality systems. We passed the standard attestation of ISO9001:2008 and obtained CE certification. With more than 30 years of experience in Hydro-pneumatic industry, we have been getting lots of patents, and won the honorary title of national high-tech and innovative enterprise in China. July and Eagl are our two brands. Besides, July Hydro-pneumatic Equipment Co., Ltd is the teaching and experimental base that Dongguan University of Technology designated.
Customization is another advantage of JulyR. Hydro-pneumatic products apply to many fields, especially machinery, automobile, electronic, shoemaking and mining industries. Our products are widely recognized and trusted by users and can meet the changing continuously economic and social needs. JulyR's partners are all over the world. So far, our machines, components and accessories are already exported to USA, Northern Europe, Australia, Russian Federation, South Asia, Mid-east, Brazil and dozens of other countries and regions.
JulyR will initiate the second phase of our development strategy. We have been regarding "premium quality, reasonable price, efficient production and best service" as a tenet, to go all out and innovate continuously. Hope to cooperate with more customers for mutual development and benefits. Pressure has difference to the world, hopefully our products could give you an edge over the competitors.
