Quick Details
Description

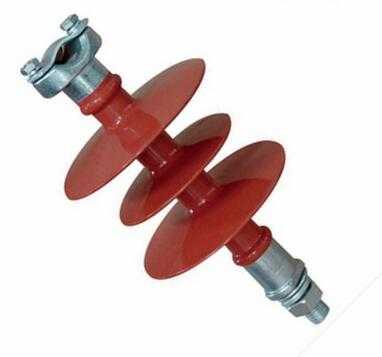

- Model NO.: Polymer Insulator Pin Type
- Structure: Pin Insulator
- Usage: High Voltage Power Transmission
- Size of Bearing Capacity: 4kn
- Color: Red
- Polymer Insulator: Pin Type
- Rated Voltage: 11kv
- Trademark: VIC
- Origin: Wuniu, Wenzhou, Zhejiang, China
- Material: Composite Polymer
- Type: B Type Insulator
- Connection Method: Trough Type
- Certification: ISO9001
- Brand: Vic
- OEM: Accept
- Model: Fpq-11/4t
- Specification: ANSI
- HS Code: 8535900090
This production is applied to high voltage power line service. And have features of good gydrophobicity, anti-ageing, anti-leakage trace and electric erode proof, tensile strength, strong mechanical strength, shock resistence good quakeproof and brittle failure proof, light weight easy to installation, and the installation outline of top and base are the same size with porcelain pin type, they can exchange to use each other.
|
Type
|
FPQ-10/1.4
|
FPQ-10/3.0
|
|
Rating voltage
|
10
|
10
|
|
Rating load
|
1.4
|
3.0
|
|
Section height
|
230
|
230
|
|
Minimum
arcing distance
|
110
|
110
|
|
Minimum nominal
creepage distance
|
300
|
300
|
|
Lightning impulse
withstand voltage
|
105
|
105
|
|
1min Wet powerfrequency
withstand voltage
|
40
|
40
|
|
|
Type
|
Rated
voltage
(kV)
|
Rated
mechanical
bent failling
load
(kN)
|
Thread
diameter
of
downside
(mm)
|
H
Structure
height
(mm)
|
h
Insulation
distance
(mm)
|
Min
Nominal
creepage
distance
(mm)
|
Full wave lightning
impulse withstand
voltage(peak value)
(kV)
|
1min power
frequency wet
withstand voltage
not less than(kV)
|
|
|
FPQ2W
-10/3
|
10
|
3
|
M16
/18/20
|
260
|
185
|
460
|
110
|
50
|
|
|
FPS-
105/5
|
10
|
5
|
20
|
280
|
170
|
380
|
105
|
42
|
|
|
FP-
35/8
|
35
|
8
|
-
|
440
|
305
|
1010
|
185
|
100
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
Name
|
Type
|
Rated
voltage
(kV)
Min
|
Nominal
creepage
distance
(mm)
|
Rated
mechanical
bend failling
load
(kN)
|
1min power
frequency wet
withstand
voltage not
less than(kV)
|
Full wave
lightning impulse
withstand voltage
(peak value)not
less than (kV)
|
H
Structure
height
(mm)
|
h Min
Electric
arc Distance
(mm)
|
|
Composite
Pin insulators
|
FPQ-11/5
|
11
|
395
|
5
|
38
|
95
|
260
|
190
|
|
Composite
Pin insulators
|
FPQ-
15/12.5
|
15
|
505
|
12.5
|
50
|
125
|
240
|
170
|
|
Composite
Pin insulators
|
FP-
24/6
|
24
|
640
|
6
|
63
|
150
|
351
|
290
|
Victory Electric Power Equipment Co., Ltd. is Located at 68 Qiaoting Road, Shuige Industrial Park, Lishui City Zhejiang P. R. China, which is one of the largest enterprises specialized in producing power fittings, insulators and pole line accessories in China. We had got the Internatioanl Qaulity System ISO9001: 2000 certificate, and almost all products had passed the international lab test.
Our company have a strong technological power, top-ranking production equipments, advanced production process, a complete range of examining/detecting methods and high-efficiency enterprise management mechanism; Whose energy-saving and insulating capabilities comply with the energy-saving and insulating standards specified by the country. The company implements the national standards strictly and also makes equivalent adoption of the international standards.
Our company pay more attention to the sales network and after-sale service, Our products had been sold to more than 30 countries or regions. Our company continuously introduces the new technology, equipments and high-tech talents to make innovations in quality, technology and mechanism, realize the enduring improvement of quality and the high-standard upgrading of pre-sale and after-sale services, and meet the requirements of old and new customers so as to make more efforts and contributions to the brilliant future of the international electric power industry.
