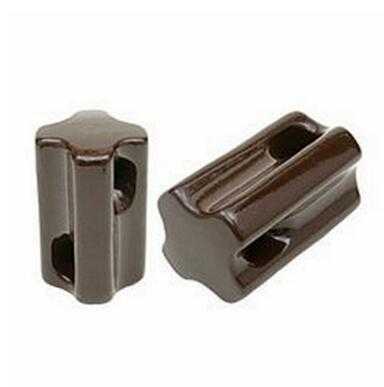

• 54-1 ANSI ISO9001 Standard Ceramic Stay Porcelain Insulator

54-1 ANSI ISO9001 Standard Ceramic Stay Porcelain Insulator

1. High quality & competitive price; 2. Different sizes you can choose; 3. More than ten years production experience.

Product Details

Quick Details

Description

  • Model NO.: 54-1
  • Type: Solid
  • Material: Porcelain
  • Maximum Voltage: <10KV
  • Certification: ISO9001
  • Brand: Vic
  • Insulator Type: Strain Insulator
  • OEM: Accept
  • Specification: ANSI
  • HS Code: 8535900090
  • Application: Insulators
  • Chemistry: Porcelain
  • Thermal Rating: 250 250
  • Classification: Hybrid Insulation Materials
  • Color: Brown
  • Name: Ceramic Insulator
  • Size: 54-1 54-2 54-3 54-4
  • Trademark: VIC
  • Origin: Wuniu, Wenzhou, Zhejiang, China



1. High quality & competitive price
2. Different sizes you can choose
3. More than ten years production experience

type

54-1

54-2

54-3

54-4

Creepage Distance mm

41

48

57

76

main dimension(H)

89

108

140

171

main dimension(h)

44

57

79

67

main dimension(h)

64

76

103

114

main dimension(O)

64

73

86

89

main dimension(d)

44

54

60

60

main dimension(d1)

16

22

25

25

Mechanical Falling Load KN

44

53

89

89

Power frequency flash over voltage dry/kv

25

30

35

40

Power frequency flash over voltage Wet/kv

12

15

18

23

Apply Standard

    ANSI

54-1 ANSI ISO9001 Standard Ceramic Stay Porcelain Insulator

Company Profile

Victory Electric Power Equipment Co., Ltd. is Located at 68 Qiaoting Road, Shuige Industrial Park, Lishui City Zhejiang P. R. China, which is one of the largest enterprises specialized in producing power fittings, insulators and pole line accessories in China. We had got the Internatioanl Qaulity System ISO9001: 2000 certificate, and almost all products had passed the international lab test.

Our company have a strong technological power, top-ranking production equipments, advanced production process, a complete range of examining/detecting methods and high-efficiency enterprise management mechanism; Whose energy-saving and insulating capabilities comply with the energy-saving and insulating standards specified by the country. The company implements the national standards strictly and also makes equivalent adoption of the international standards.

Our company pay more attention to the sales network and after-sale service, Our products had been sold to more than 30 countries or regions. Our company continuously introduces the new technology, equipments and high-tech talents to make innovations in quality, technology and mechanism, realize the enduring improvement of quality and the high-standard upgrading of pre-sale and after-sale services, and meet the requirements of old and new customers so as to make more efforts and contributions to the brilliant future of the international electric power industry.
