Quick Details
Description

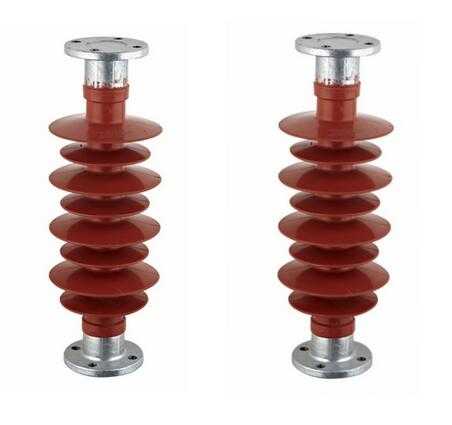

- Model NO.: FZSW22-220
- Material: Composite Polymer
- Type: Line Insulator
- Connection Method: Trough Type
- Certification: CE, ISO9001
- Brand: Vic
- Size: as You Required
- Height: 240mm
- Specification: ANSI
- HS Code: 8535900090
- Application: High-voltage
- Structure: Post Line Insulator
- Usage: High Voltage Power Transmission
- Size of Bearing Capacity: 40KN
- Color: Red
- Polymer Insulator: Post Insulator
- OEM: Accept
- Trademark: VIC
- Origin: Wuniu, Wenzhou, Zhejiang, China
This production is applied to high voltage power line service.and have features of good gydrophobicity,anti-ageing,anti-leakage trace and electric erode proof,tensile strength,strong mechanical strength,shock resistence good quakeproof and brittle failure proof,light weight easy to installation,and the installation outline of top and base are the same size with porcelain pin type,they can exchange to use each other
|
type
|
Rated voltage
(kV)
|
Rated mechanical bending load
(kN)
|
Height
(mm)
|
Insulation distance
(mm)
|
Min creepage distance
(mm)
|
Diameter of shed
(mm)
|
Lightning impulse withstand voltage
(kV)
|
P.F withstand voltage(virtual value)
(kV)
|
|
FZSW22-220
|
10
|
4
|
240
|
165
|
460
|
142/116
|
105
|
42
|
