Quick Details
Description

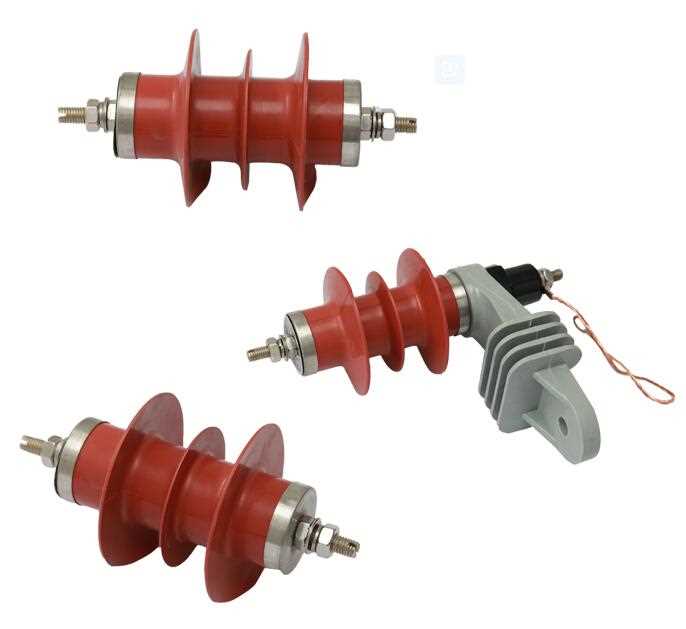

- Place of Origin: Shandong, China (Mainland)
- Brand Name: Wide area
- Model Number: HY5WS-10/30TLB
- Color: Red
- Material: Polymeric metal oxide
- Housing: Silicone rubber
- Rated voltage: 10KV
- creepage distance: 270
- Application: High Voltage Equipment
- System voltage: 6kv
- OEM: Available
Applicable technical conditions:
A. Applicable to indoor and outdoor;
B. Ambient temperature -40 ℃ ~ + 40 ℃;
C. Altitude does not exceed l000m;
D. Power frequency is not less than 48Hz, no more than 62 Hz;
E. The working frequency voltage applied to the arrestor should not exceed the continuous operating voltage of the arrester (no gap type).
F. Earthquake intensity is 8 degrees and following areas;
G. The maximum wind speed does not exceed 35m / s.
Main technical parameters
|
Model
|
Nominal system voltage
|
Rated voltage
|
Continuous operation voltage
|
DC 1mA reference voltage
kV
|
2mS square wave flow capacity
A
|
Lightning impulse current residual
|
Steep wave impulse current residual
|
switching impulse-current residual voltage
|
creepage distance
|
Remark
|
|
kV (Valid value)
|
kV (Peak)
|
|
|
HY5WS-10/30TLB
|
6
|
10
|
8
|
15
|
100
|
30
|
34.6
|
25.6
|
270mm
|
With release device
|
