Quick Details
Description
- Place of Origin: Shandong, China (Mainland)
- Brand Name: Wide area

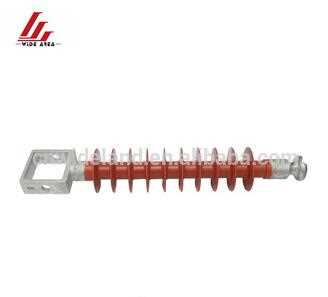

- Model Number: FS-35/5.0T
- Type: Insulator, cross-arm
- Material: Composite Polymer
- Application: High Voltage, High Voltage
- Rated Voltage: 35kv
- Tensile Strength: 5.0kN
- Color: Red
- Rated voltage: 35kv
- Rated mechanical tension load: 5.0kN
- Minimum arc distance: 470mm
- Feature: Stain resistance
- OEM: Available
Main features
Superior electrical properties,high mechanical strength.
Good stain resistance, good anti-fouling performance,anti-pollution flashover.
Small volume,light weight.Lightweight structure, easy to transport and install.
Good sealing performance, Excellent resistance to corrosion electric corrosion.
Strong impact resistance and shock resistance, good anti-brittleness and creep resistance.
Specifications
1)Working condition
Suitable for indoor and outdoor;
Grid frequency is not more than 100HZ;
Air temperature
Maximum temperature: + 40 ℃
Minimum temperature: -40 ℃
Maximum wind speed: 35m / s;
Earthquake resistance: 8 degrees;
Can be used for heavy pollution and high altitude areas;
2)Main technical parameters
|
Model
|
Rated voltage
kV
|
Rated mechanical tension load
kN
|
Fixed end metal connector Type
|
Wire connection type
|
Full wave lightning impulse withstand voltage
kV
|
Min nominal creepage distance
mm
|
Minimum arc distance
mm
|
1min power frequency wet withstand voltage
kV
|
|
FS-35/5.0T
|
35
|
5.0
|
P
|
T
|
250
|
1100
|
470
|
120
|
Shandong WIDE AREA Technology CO., LTD. was founded in February 1999. It is located in Dongying High-tech Industrial Development Zone of Shandong Province. The company covers an area of 100 mu. The registered capital is 6 0 million yuan. At present, the company has 12 subsidiaries, 5 research centers and 1 office. The number of staff is more than 340, 55% of staff is undergraduate degree or above.
The company's business covers three broad areas, which including industrial automation control, information communication and software development. The company's products include integrated automation system of substation, power integrated monitoring system, video surveillance system, insulators and arresters, intelligent management system for oil well production, real time data center of industrial production. The company is an excellent high-tech enterprise, excellent software enterprise, excellent computer information system integration enterprise and service outsourcing enterprise in Shandong Province. The company has 23 patents and 19 software copyrights. It also has many qualifications, such as computer information system integration, communication information network system integration, information engineering supervision, electronic and intelligent engineering construction, power transmission project construction. The company was certified by ISO9001, ISO14001, OHSAS18001, ISO27001, CMMI4 software certification, and won the national quality project award in 2017.
